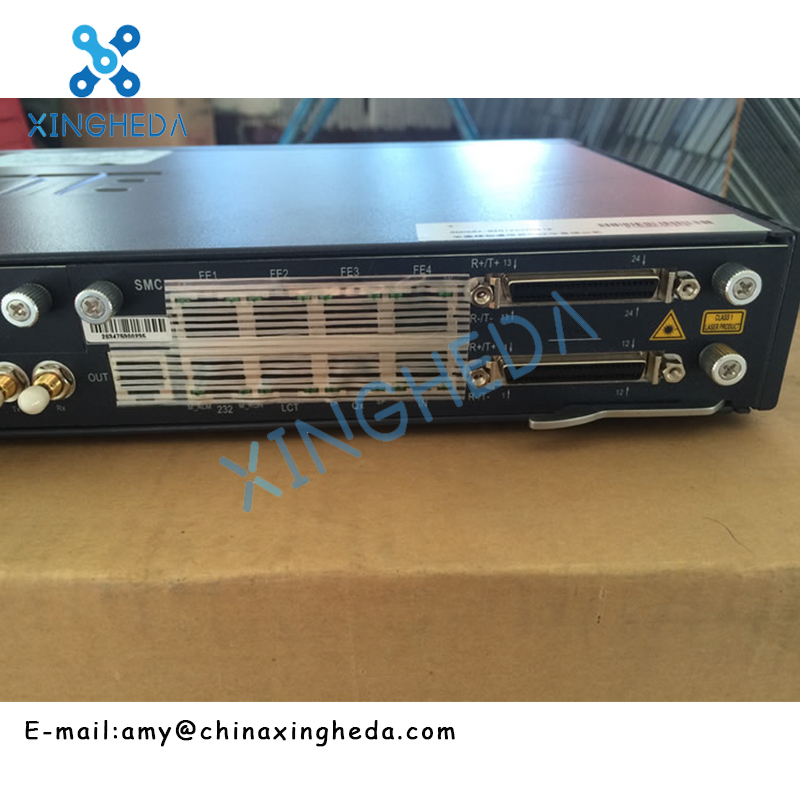

ZTE S200 ZTE SMCxF75T SMC*F75T (4*S-1.1,LC) Service Access Platform
SDH equipment
Product Description:
ZTE ZXMP S200 Product Introduction ZXMP S200 is a compact STM-4/STM-1 multi-service access device that can realize STM-4, STM-1, E3/T3, E1/T1, FE, N×64k, SHDSL and 2/4 line audio services Transmission and management. ZXMP S200 has high integration, convenient and flexible installation methods and multiple power access methods, which is suitable for telecom operators and private networks to transmit terminal access services and reduce operating costs.
1. Flexible equipment configuration: STM-4/STM-1 compatible equipment adopts SFP module, supports online upgrade of network equipment from 155M to 622M, and can be used as standard TM equipment, ADM equipment and REG equipment.
2. Abundant multi-service provision capabilities Support STM4, STM1 business support E1/T1, E3/T3 business
3. Support 10M/100M Ethernet service (electrical/optical port)
4. Support N×64k service, support SHDSL service Support 2/4 line audio service 5. Support RS232/RS485/RS422 transparent data interface
6. Strong crossover capability: provide high-order crossover capability of 64×64VC-4 and low-order crossover capability of 2037×2037 VC-12
Specifications:
| Size (H×W×D) | 45mm × 442mm × 240 mm |
| Weight | 5.5 kg |
| Number of service slots | 1 |
| Switching capacity | 64×64VC-4,2037×2037 VC-12 |
| Service Interface | STM-4, STM-1 E1, T1 FE(e/o) N×64K RS232/RS485/RS422,2/4-line VF interface |
| Maintenance and operation | Front cabling, front installation and front maintenance |
| Power supply (DC/AC) | 220/110V AC, -48/-60V DC, +24V DC |
| Power Consumption | <30 Watts |
| MTBF/MTTR | >20000h / <2 h |
| Noise | <55 dB |
| Operating Environment Requirement | -5° C ~+50° C, 5%~95%, Non-condensing |
| Altitude | <4000 m |
We can offer all boards of ZTE ZXMP S200 , below are some for your reference:
ET1-120 : 21-channel E1 electrical tributary board (120ohm)
ET1-75 : 21-channel E1 electrical tributary board (75ohm)
OBA14 : Optical booster amplifier OBA14 (external,input-6,SC)
OBA17 : Optical booster amplifier OBA17 (external,SC)
SMC*D120T(2*S-4.1 LC) : Dual-optical-interface 21E1(120ohm)System
Motherboard SMC with two S-4.1 optical modules
SMC*D75E : Dual-optical-interface 8E1(75ohm)System Motherboard SMC
with two S-1.1-1550nm Tx/1310nm Rx optical modules
SMC*D75E(2*S-4.1 LC) : Dual-optical-interface 8E1(75ohm)System
Motherboard SMC with two S-4.1 optical modules
SMC*D75T : Dual-optical-interface 21E1(75ohm)System Motherboard SMC
with two S-1.1-1550nm Tx/1310nm Rx optical modules
SMC*F75T : Four-optical-interface 21E1(75ohm)System Motherboard SMC
with four S-1.1-1550nm Tx/1310nm Rx optical modules
SMC*F75T(4*S-4.1 LC) : Four-optical-interface 21E1(75ohm)System
Motherboard SMC with four S-4.1 optical modules
TFE*4 : 4-channel transparent-transmission fast Ethernet electrical
interface board
TFE*4B(L-1.1 LC) : 4-channel transparent transmission fast Ethernet
optical interface board with four L-1.1 optical modules
SMC*F75T(4*L-4.1 LC) : Four-optical-interface 21E1(75ohm)System
Motherboard SMC with four L-4.1 optical modules
SMC*F75T(4*L-4.2 LC) : Four-optical-interface 21E1(75ohm)System
Motherboard SMC with four L-4.2 optical modules
SMC*F75T(4*S-1.1 LC) : Four-optical-interface 21E1(75ohm)System
Motherboard SMC with four S-1.1 optical modules
SMC*F75T 4*S-1.1 : Four-optical-interface 21E1(75ohm)System
Motherboard SMC with four S-1.1-1310nm Tx/1550nm Rx optical modules
ZXMP S200 is a compact STM-4/STM-1 multi-service access equipment that implements transmission and management of STM-4, STM-1, E3/T3, E1/T1, FE, N×64k, SHDSL and 2/4-line VF services. Features high level of integration, flexible installation and multiple power supply access methods, ZXMP S200 is suitable for telecom operators and private networks to deliver terminal access services with lowered operational cost
Product Details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
