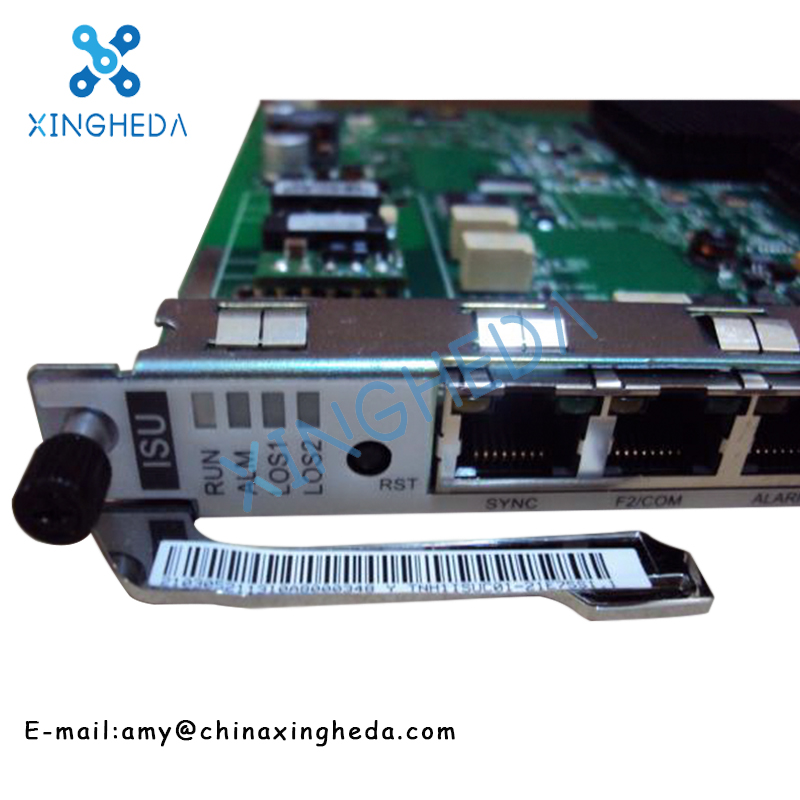

    Huawei TNHD00ISUC01 ISUC OSN500 8xFE/21xE1/75ohm/2xSTM-1 Integrated System Control Unit

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : Huawei TNHD00ISUC01
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/week
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Huawei TNHD00ISUC01 ISUC OSN500 8xFE/21xE1/75ohm/2xSTM-1 Integrated System Control Unit

    Huawei TNHD00ISUC01 ISUC OSN500 8xFE/21xE1/75ohm/2xSTM-1 Integrated System Control Unit


    Product Description:

    MSTP is a multi-service transport platform based on SDH. It inherits SDH’s protection, recovery and OAM abilities and supports transmission of PDH, SDH, Ethernet, ATM, and other services. MSTP is the most extensive multi-service transport solution used to carry network applications.
    Hybrid MSTP incorporates evolutions from the new generation of multi-service transport solutions. The Hybrid MSTP system uses a unified switching architecture that combines the transmission capacity of conventional MSTP models with the added packet transport capabilities found in the MPLS/MPLS-TP tech.
    Hybrid MSTP is fully compatible with existing MSTP networks and delivers improved efficiencies in network O&M, providing the optimal performance and cost-effectiveness to meet the demands of the transformations in packet-based transmission over bearer networks.
    According to data released Ovum, as of the second quarter of 2015, Huawei ranked first in the optical network and MSTP/Hybrid MSTP market worldwide. Huawei MSTP/Hybrid MSTP products and services are used in 130 countries and regions worldwide.

    Specifications

    OSN 500
    OSN 550
    OSN 580
    Dimensions
    44mm (H) x 442mm (W) x 220mm (D)
    88mm (H) x 442mm (W) x 220mm (D)
    221 mm (H) x 442 mm (W) x 224 mm (D)
    Switch Capacity
    Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order)
    Packet: 64 Gbit/s ,TDM: 20 Gbit/s (higher order)
    Packet: 560 Gbit/s, TDM: 280 Gbit/s (higher order) Packet: 280 Gbit/s, TDM: 280 Gbit/s (higher order)
    Service Slots
    3 slots
    8 slots
    15 slots
    OTN interface
    N/A
    N/A
    OTU-2, OTU-3
    Ethernet interface
    FE/GE
    FE/GE/10GE
    FE/GE/10GE/40GE
    SDH interface
    STM-1/4
    STM-1/4/16
    STM-1/4/16/64
    PDH interface
    E1/E3; T1/T3
    E1/E3; T1/T3
    E1/T1, E3/T3
    ATM interface
    E1, STM1
    ATM/IMA E1, ch STM-1
    CES interface
    ATM/IMA E1, ch S TM-1
    PCM interface
    FXS/FXO, 2/4 wire audio and E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A, RS485, G.703 64 kbit/s
    bidirectional; IEEE C37.94
    FXS/FXO, 2/4 wire audio and E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A, RS485, G.703 64 kbit/s
    bidirectional; IEEE C37.94
    WDM interface
    40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
    40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
    Networking Mode
    •• Supporting pure packet, hybrid (packet + SDH) or SDH networking •• Supporting WDM networking
    •• Supporting single-fiber bidirectional transmission
    Supports pure packet, hybrid (packet + SDH), or SDH networking Supports WDM networking
    Supports pure packet, hybrid (packet + SDH), or SDH networking Supports WDM networking

    Product Details:


    If you are interested, please let us know the specific model. We will provide the best service and the best price!
