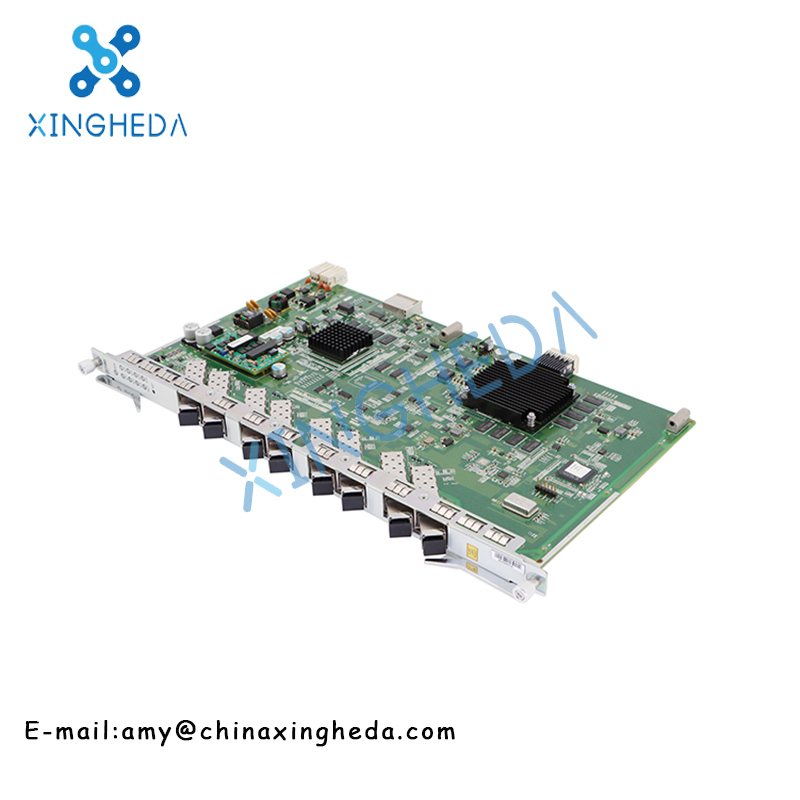

    ZTE GTGO GPON 8 Port Service Interface Board With C+ C++ SFP For ZTE OLT

    Ask Lasest Price
    Brand Name : ZTE
    Model Number : ZTE GTGO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/week
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    ZTE GTGO GPON 8 Port Service Interface Board With C+ C++ SFP For ZTE OLT

    ZTE GTGO GPON 8 Port service interface board with C+ C++ SFP for ZTE OLT


    Product Description:

    ZTE GTGO Service Board targets a large-capacity xPON aggregation access platform for next-generation networks and provides access aggregation and management control for HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, WiFi and other full-service services for next-generation networks. Carrier-class QoS and security reliability. It meets the requirements of “large capacity, high density, meeting the network evolution and deployment requirements of “large capacity, less office”, enhanced access capability, and meets the requirements of network flattening. High-density interface board provides special solutions for large split ratio and long-distance application scenarios.
    Product Specification:
    BrandZTE
    ModelGTGO
    GPON Port8-GPON Port
    TypeC+ Module: Single Fiber Bidirectional Optical Module, Class C+
    MAX Split ratio (Class B+)1:64
    MAX Split ratio (Class C+/Class C++)1:128
    Operating WavelengthTx: 1490 nm, Rx: 1310 nm
    Encapsulation TypeSFP
    Port RateTx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
    Minimum Output Optical PowerC+ Module : 3.00 dBm
    Maximum Output Optical PowerC+ Module : 7.00 dBm
    Maximum Receiver SensitivityC+ Module : -32.00 dBm
    Optical Connector TypeSC/PC
    Optical Fiber TypeSingle-mode
    Reach20.00 km
    Overload Optical PowerC+ Module : -12.0 dBm
    Extinction Ratio8.2 dB
    Weight1kg
    Dimensions (W x D x H)22.86 mm x 237.00 mm x 395.40 mm

    Product Details:


    If you are interested, please let us know the specific model. We will provide the best service and the best price!
