    HUAWEI PSXCSA SSN2PSXCSA 03020QCD Huawei OSN3500 Super Dual Plane Board

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : SSN2PSXCSA
    Price : $100-$200
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/week
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

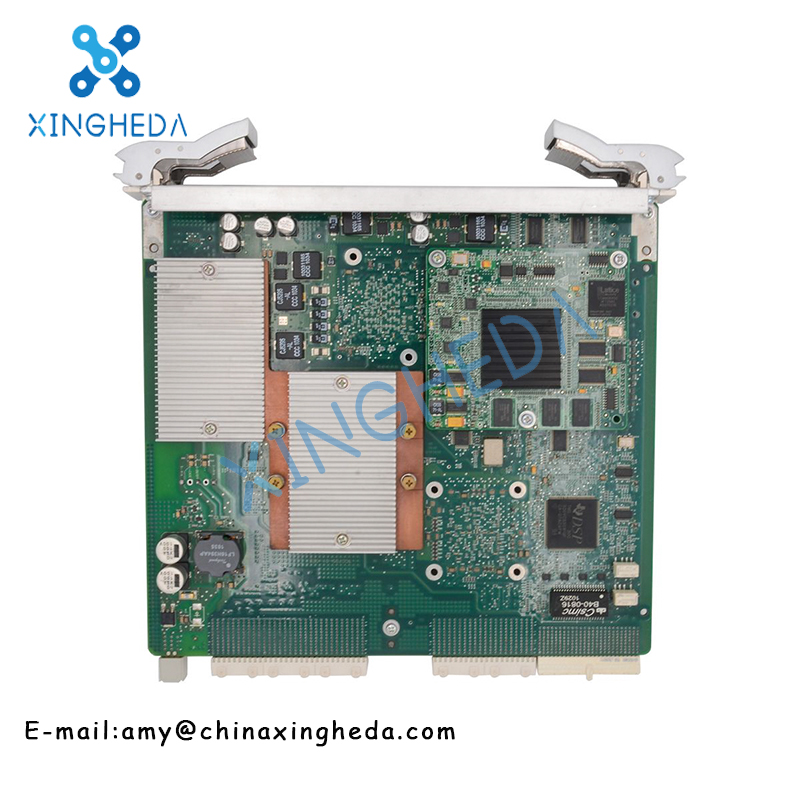

    HUAWEI PSXCSA SSN2PSXCSA 03020QCD Huawei OSN3500 Super Dual Plane Board

    HUAWEI PSXCSA SSN2PSXCSA 03020QCD Huawei OSN3500 Super dual-plane board


    Product Desription:

    OSN 3500-200G TDM and 100G Packet Switching and Synchronous Timing Board.

    * Higher order cross-connect capacity: 200 Gbit/s

    * Lower order cross-connect capacity: 20 Gbit/s

    * Access capacity: 155 Gbit/s.

    * Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.

    * Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.

    * Supports a maximum of 40 linear MSP protection groups.

    * Supports a maximum of 12 ring MSP protection groups.

    * Supports a maximum of 8904 SNCP pairs.

    * Supports the standard system synchronization clock.

    * Supports the processing of the S1 byte to realize the clock protection switching.

    * Supports the extraction, insertion, and management of the SSM and clock ID.

    * Supports the 1+1 hot standby. The default protection mode is the non-revertive switching mode.


    PSXCSA is a Super dual-plane Cross-Connect board for HW OSN3500, provide 200G High order, 20G Low order Cross-Connect capacity and 155G Access capacity. PSXCSA have N2 and N3 version.


    Specification:

    Dimensions (mm)40.0 (W) x 235.2 (D) x 261.4 (H)
    Weight(kg)1.2
    Cross ability

    High-order crossover capability: 200Gbit/s

    Low-order crossover capability: 20Gbit/s

    Access capacity: 155Gbit/s

    Clock access capability

    External input clock: 2 channels 2048kbit/s or 2048kHz

    External output clock: 2 channels 2048kbit/s or 2048kHz

    Working environment:The maximum power consumption is 80W at a normal temperature of 25 degrees


    Product details:


    If you are interested, please let us know the specific model. We will provide the best service and the best price!
