Product Desription:

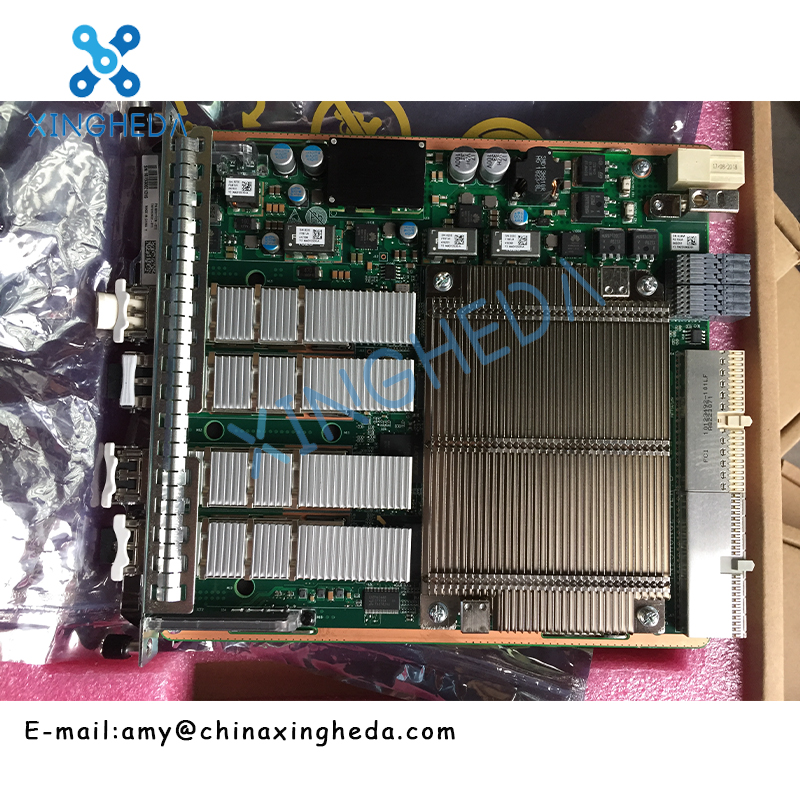

TNF6HSNQ2 4-port 10G universal line service processing board
Applied to Huawei OSN 1800V and 1800 II Enhanced
Supports OTN and SDH service, and functions such as OTN ports, and SDH overhead processing.
Supports Intra-Board 1+1 Protection, Tributary SNCP, ODUk SNCP (k = 0, 1, 2, or flex)
Supports Physical Clocks (ODU0/ODU1/ODUflex)
Supports ESC communication
Supports Electrical-layer ASON
Supports inloops and outloops on VC-4 paths.
TNF6HSNQ2 is a 4-port 10G universal line service processing board applied to Huawei OSN 1800 II Enhanced, OSN 1800V. The HSNQ2 board is a universal line board and supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, VC-12, VC-3, and VC4 with the total bandwidth not exceeding 40 Gbit/s (the total bandwidth of SDH services does not exceed 20 Gbit/s). The HSNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.
| Basic functions | ||||
| OTN signals | 32 x ODU0/16 x ODU1/4 x ODU2/32 x ODUflex<->4 x OTU2 (OTU is the abbreviated form of optical channel transport unit.) 4 x ODU2e<->4 x OTU2e (Only for pure OTN signals) 32 x ODU0<->16 x ODU1<->4 x ODU2<->4 x OTU2 | |||
| SDH signals | 8 x STM-16<->8 x ODU1<->2 x ODU2<->2 x OTU2 2 x STM-64<->2 x ODU2<->2 x OTU2 NOTE: For 1800 II Enhanced, a TNF6HSNQ2 board supports at most 5 Gbit/s bandwidth of SDH services | |||
| Clock synchronization | OTN services: Supported (ODU0/ODU1/ODUflex) SDH services: SDH clock synchronization is supported when SDH virtual ports are configured. | |||
Specification:
| Specifications (OTN functions) | ||||
| Basic functions | Cross-connect functionality | Implements service grooming when working with cross-connect boards. 32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e | ||
| Maintenance features | Loopbacks | Supports inloops and outloops at WDM-side ports. Supports inloops and outloops on ODU0, ODU1, and ODUflex channels. | ||
| Pseudo random binary sequence (PRBS) test function | Supports the PRBS test function on WDM and system sides. | |||
| Test frames | Not supported | |||
| Delay measurement (DM) | TNF6HSNQ2: Supported | |||
| Alarms and performance events monitoring | Monitors parameters such as the bias current, operating temperature, and optical power of a laser. Monitors OTN alarms and performance events. Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures. | |||
| Specifications (SDH functions) | ||||
| Service processing | Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-64c, and VC-4-16c services (VC-4-4c, VC-4-64c, and VC-4-16c services are concatenated services). | |||
| Overhead processing | Processes section overheads of STM-16/STM-64 signals. Transparently transmits and terminates path overheads. Supports the setting and querying of J0 (to be received), J1, and C2 bytes. Provides transparent DCCs and orderwire byte channels. | |||
| Protection schemes | TNF6HSNQ2: SNCP protection: supported 1:N linear MSP: supported Two-fiber bidirectional MS ring protection: not supported | |||
| WDM-Side Pluggable Optical Module | ||||
XFP-10G-1310nm-SMF-10km XFP-10G-1550nm-SMF-40km XFP-10G-1550nm-SMF-80km XFP-10G-(1529.17nm to 1560.20nm)(DWDM,100GHz,Fixed)-SMF-40km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km XFP-10G-(1471nm to 1611nm)(CWDM)-SMF-70km | ||||
| Version description of the HSNQ2 board | ||||
| Board | Product Applicable-System Control Board-Initial Board Version Supported by System Control Board | |||
| TNF6HSNQ2 | 1800 V-TNF5UXCM/TNF5UXCME/TNZ5UXCMS/TNF5XCH-V100R007C00 1800 V-TNZ8XCH-V100R009C00SPC700 1800 II Enhanced-TNZ1UXCL-V100R007C10 1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600 | |||
| Mechanical Specifications | ||||
| Typical Power Consumption(W) | 63 | |||
| Maximum Power Consumption(W) | 69 | |||
| Dimension (W x H x D, mm) | 193.8 x 19.8 x 205.9 | |||
| Weight(kg) | 0.8 | |||
