Product Desription:

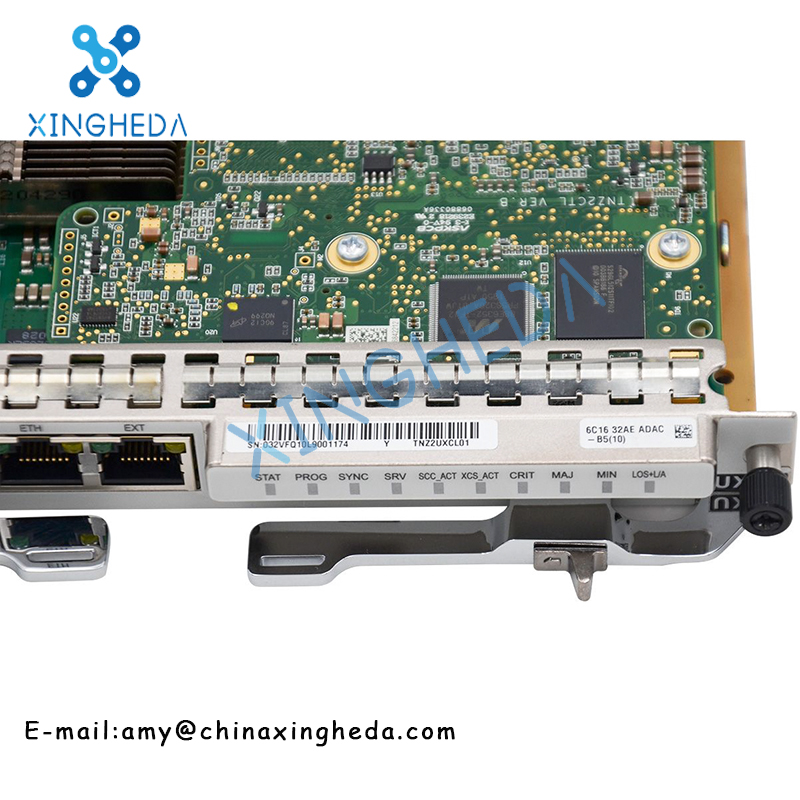

TNZ2UXCL01 (Z2UXCL_Z1SCC_Z1STG) system control, cross-connect and clock board
Logical Board on the NMS: Z2UXCL (TNZ2UXCL cross-connect board), Z1SCC (system control board), Z1STG (timing board)
Apply to Huawei OSN 1800 II Enhanced
Supports 1+1 hot backup
Supports non-revertive manual and automatic switching
Supports outband DCN, inband DCN, and ESC functions
Supports extraction, insertion, and processing of SSM information and clock ID
TNZ2UXCL01 (Z2UXCL_Z1SCC_Z1STG) is a system control, cross-connect and clock board applied to Huawei OSN 1800 II Enhanced. The logical slots for the TNZ2UXCL board on the NMS are slots 7 (07/17/27) and 8 (08/18/28). The TNZ2UXCL board can be configured as the Z2UXCL/Z1SCC/Z1STG logical boards to provide the functions of a system control, cross-connect, and timing board and implement cross-connection of ODUk (k = 0, 1, 2, 2e, flex)/VC-4/VC-3/VC-12 services and switching of packet services.
Specification:
| System Control and Communication Unit | |
| Function and Feature | Description |
| Basic functions | Grooms services, manages configurations, and reports alarms in a
subrack. Backs up NE Data. When the data of an NE changes, the system control and communication unit immediately saves changed data to a storage medium to ensure that the NE data still exists after the NE undergoes a cold reset or power failure. This feature improves NE reliability. Implements communication between NEs through IP over DCC or HWECC. |
| Protection | Supports 1+1 hot backup. Supports non-revertive manual and automatic switching. |
| DCN | Supports outband DCN, inband DCN, and ESC functions. |
| Fan alarm management | Provides 1+1 power supplies to fans, supports fan speed adjustment and fan fault detection, and manages fan alarms |
| Subrack fan operating mode configuration | Supported |
| Power supply management | Checks whether the power input board can be detected |
| Master/Slave subrack | Not supported |
| Cross-Connect Unit | |
| Function and Feature | Description |
| Basic functions | Supports two cross-connect modes: O+P+S (OTN, packet, and SDH) mode and O+S (OTN and SDH) mode. O+P+S mode: O+S mode: NOTE: |
| Protection type | Supports 1+1 hot backup. |
| Energy Saving | Only hot backup is supported. |
| Clock Unit | |
| Function and Feature | Description |
| Basic functions | Implements clock synchronization on an NE, and provides system clock signals and frame header signals for service boards. The clock signals comply with ITU-T G.813 and ITU-T G.823.
|
| Other functions | Supports extraction, insertion, and processing of SSM information and clock ID.
|
| Mechanical Specifications | |
| Dimensions (W x H x D, unit: mm/in.) | 193.8 x 22.4 x 205.9 (7.6 x 0.9 x 8.1) |
| Weight | 0.80kg (1.8lb.) |
| Power Consumption | |
| Typical Power Consumption (W) | 77 |
| Maximum Power Consumptiona (W) | 86 |
