    HUAWEI HSNS4 TNF6HSNS4T65 03031YNA Huawei OSN 1800 V System Auxiliary Interface Board

    HUAWEI HSNS4 TNF6HSNS4T65 03031YNA Huawei OSN 1800 V system auxiliary interface board

    Product Desription:

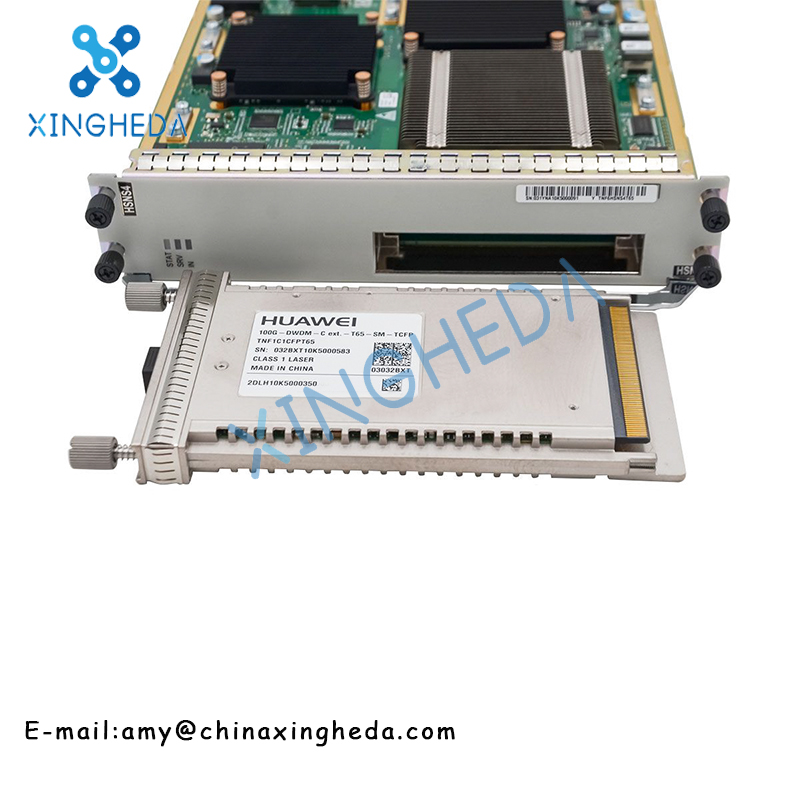

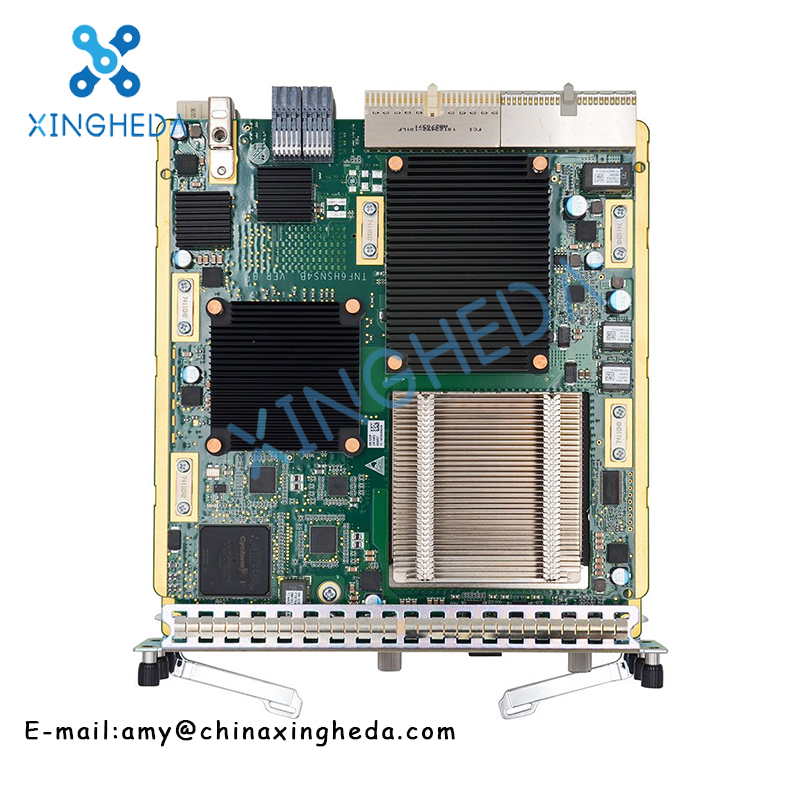

    TNF6HSNS4T65 is 1-port 100G universal line service processing board.

    With one 100G-DWDM-C ext.-T65-SM-TCFP TNF1C1CFPT65

    Applied to Huawei OSN 1800V.

    Supports hybrid transmission of OTN and SDH services with a maximum bandwidth of 100 Gbit/s.

    Processes and converts the received service signals into one OTU4 signal carried over an ITU-T G.694.1-compliant DWDM wavelength.

    The total bandwidth of the board does not exceed 100 Gbit/s, and the total bandwidth for SDH services does not exceed 20 Gbit/s.

    Supports ODUk SNCP.

    Supports intra-board 1+1 protection (when working with the OLP board).

    Supports tributary SNCP protection.

    Supports system-side channel inloops and outloops.

    Supports WDM-side inloops and outloops.


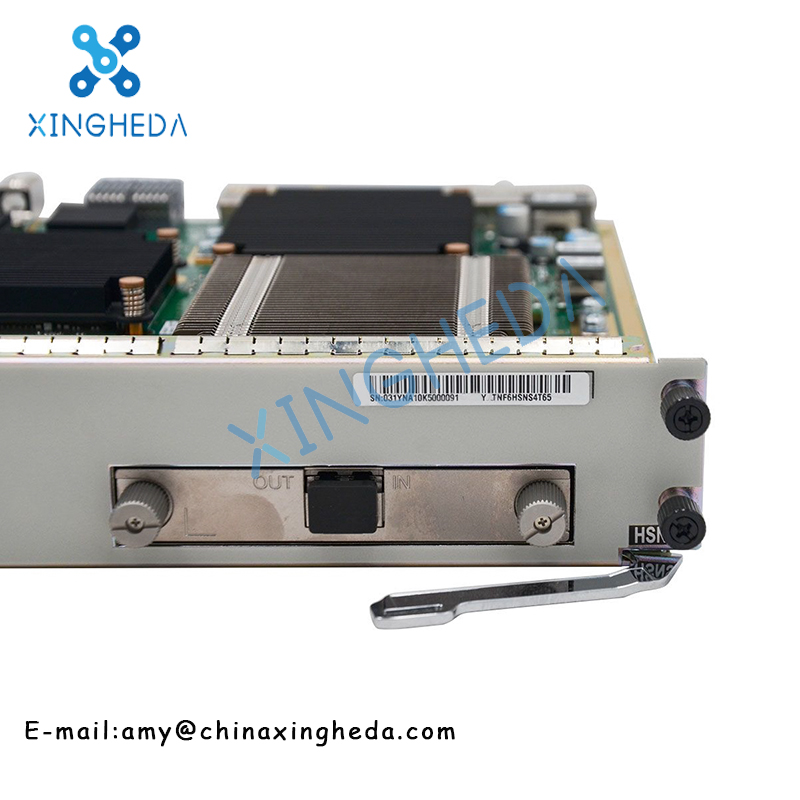

    TNF6HSNS4T65 is a 1-port 100G universal line service processing board applied to Huawei OSN 1800V. It supports hybrid transmission of OTN and SDH services with a maximum bandwidth of 100 Gbit/. TNF6HSNS4T65 comes with one TNF1C1CFPT65 module.

    Specification:

    Basic functions
    Line modeOTN

    80 x ODU0<->ODU4<->OTU4

    40 x ODU1<->ODU4<->OTU4

    10 x ODU2<->ODU4<->OTU4

    10 x ODU2e<->ODU4<->OTU4

    ODU4<->OTU4

    ODUflex(n=1, 80)<->ODU4<->OTU4

    SDH

    8 x STM-16<->8 x ODU1<->1 x ODU4<->1 x OTU4

    2 x STM-64<->2 x ODU2<->1 x ODU4<->1 x OTU4

    Regeneration mode-1 x OTU4<->1 x OTU4
    Clock synchronization

    OTN services: Supported (ODU0/ODU1/ODU2/ODUflex)

    SDH services: SDH clock synchronization is supported when SDH virtual ports are configured.

    IEEE 1588v2Not supported
    Specifications (OTN functions)
    Basic functions

    Supports conversion of the following signals:

    80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/1 x ODU4<->1 x OTU4

    Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, and ODUflex signals.

    Cross-connect functionalityImplements the following service grooming when working with cross-connect boards: 80 x ODU0/ODUflex, 40 x ODU1, 10 x ODU2/ODU2e, 1 x ODU4.
    OTN function

    Supports OTU4 interfaces on the WDM side.

    Adopts the frame formats and overhead processing methods defined in ITU-T G.709.

    Supports the SM function at the OTU4 layer.

    Supports the PM and TCM functions at the ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer, and non-intrusive monitoring of PM and TCM overheads.

    Performance and alarm monitoring

    Monitors BIP8 bytes (burst mode) to help locate line failures.

    Monitors parameters such as the bias current, operating temperature, and optical power of a laser.

    Monitors OTN alarms and performance events.

    Protection scheme

    Supports ODUk SNCP.

    Supports intra-board 1+1 protection (when working with the OLP board).

    Supports tributary SNCP protection.

    NOTE:

    When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.

    Specifications (SDH functions)
    Overhead processing

    Processes section overheads of STM-16/STM-64 signals.

    Transparently transmits and terminates path overheads.

    Supports the setting and querying of J0 (to be received) bytes.

    Provides transparent DCCs and orderwire byte channels.

    Protection schemes

    Supports SNCP protection.

    Supports 1+1 linear MSP protection.

    Service processingSupports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenated services.)
    LoopbackSupports outloops on VC-12, VC-3 channels, and supports inloops/outloops on VC-4 channels.
    Performance and alarm monitoringMonitors B1 and B2 bytes to help locate line failures.
    Version description of the UNS4 board
    BoardProduct Applicable-System Control Board-Initial Board Version Supported by System Control Board
    TNZ5UNS41800 V-TNF5UXCM/TNF5UXCME/TNF5XCH-V100R006C20
    CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, high optical power, T65)-SMF Specifications
    ParameterValue
    Line code formatePDM-QPSK(SDFEC2, wDCM-Metro)
    Transmitter parameter specifications at point S
    Center frequency (THz)191.3 to 196.05
    Maximum mean launched power (dBm)2
    Minimum mean launched power (dBm)-3
    Center frequency deviation (GHz)±2.5
    Maximum -10 dB spectral width (nm)0.4
    Maximum -3 dB spectral width (nm)0.3
    Dispersion tolerance (back-to-back) (ps/nm)12000
    TX OSNR(in band) (dB)35
    Receiver parameter specifications at point R
    Receiver typePIN
    Operating wavelength range (nm)1529 to 1568
    Receiver sensitivity (dBm)-18
    Minimum receiver overload (dBm)0
    Maximum reflectance (dB)27
    Mechanical Specifications
    Typical Power Consumption(W)91 (Line Mode) / 89.2 (Regeneration Mode)
    Maximum Power Consumption(W)102.5 (Line Mode) / 98.4 (Regeneration Mode)
    Dimension (W x H x D, mm)193.8 x 40.1 x 205.9
    Weight(kg)1.70 kg
