| Brand Name : | HUAWEI |
| Model Number : | TNM1EGS406 |
| Price : | $100-$200 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500pcs/week |
| Delivery Time : | 3-7 work days |

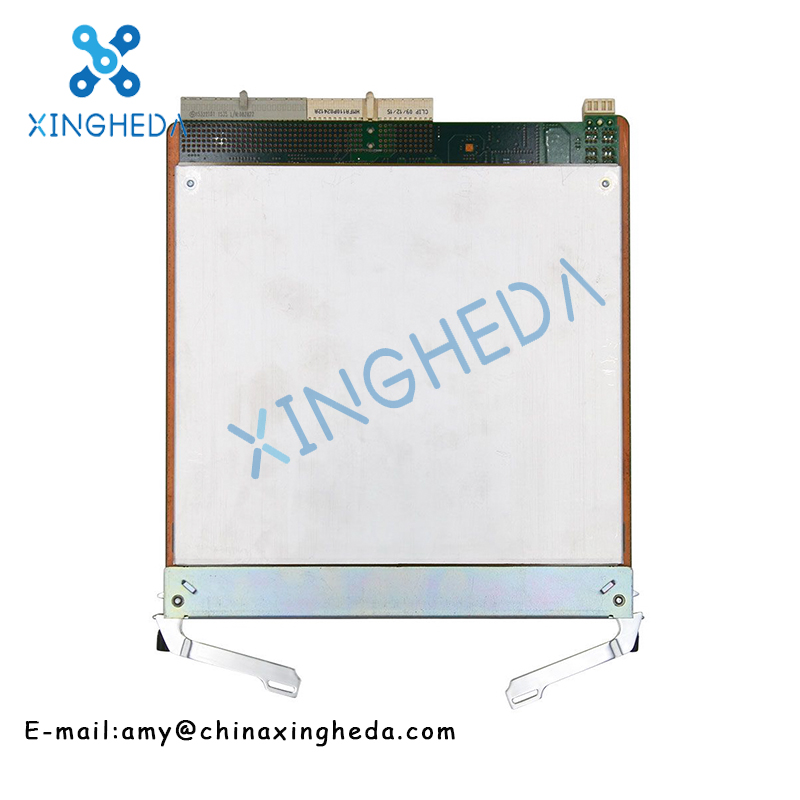

HUAWEI EGS4 TNM1EGS406 03055039 Huawei OSN500 4-port Gigabit Ethernet Switching Processing Board
Specification:
| Optical Interface Parameter | ||
| Type of Optical Interface | 1000BASE-ZX | |
| Type of fiber | Single-mode LC | |
| Operating Wavelength range(nm) | 1500 to 1580 | |
| Transmission distance (km) | 80 | |
| Mean launched power (dBm) | -2 to +5 | |
| Receiver minimum sensitivity (dBm) | -23 | |
| Minimum overload (dBm) | -3 | |
| Minimum extinction ratio (dB) | 9 | |
| Mechanical Specifications | ||
| Dimensions (mm) | 25.4 (W) x 235.2 (D) x 261.4 (H) | |
| Weight (kg) | 0.7 | |
Specifications | OSN 500 | OSN 550 | OSN 580 |
Dimensions | 44mm (H) x 442mm (W) x 220mm (D) | 88mm (H) x 442mm (W) x 220mm (D) | 221 mm (H) x 442 mm (W) x 224 mm (D) |
Switch Capacity | Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s
(lower order) | Packet: 64 Gbit/s ,TDM: 20 Gbit/s (higher order) | Packet: 560 Gbit/s, TDM: 280 Gbit/s (higher order) Packet: 280
Gbit/s, TDM: 280 Gbit/s (higher order) |
Service Slots | 3 slots | 8 slots | 15 slots |
OTN interface | N/A | N/A | OTU-2, OTU-3 |
Ethernet interface | FE/GE | FE/GE/10GE | FE/GE/10GE/40GE |
SDH interface | STM-1/4 | STM-1/4/16 | STM-1/4/16/64 |
PDH interface | E1/E3; T1/T3 | E1/E3; T1/T3 | E1/T1, E3/T3 |
ATM interface | E1, STM1 | ATM/IMA E1, ch STM-1 | |
CES interface | ATM/IMA E1, ch S TM-1 | ||
PCM interface | FXS/FXO, 2/4 wire audio and E&M X.21/V.35/V.11/V.24/V.28,
RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A, RS485, G.703 64
kbit/s bidirectional; IEEE C37.94 | FXS/FXO, 2/4 wire audio and E&M X.21/V.35/V.11/V.24/V.28,
RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A, RS485, G.703 64
kbit/s bidirectional; IEEE C37.94 | |
WDM interface | 40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM
wavelengths, compliant with ITU-T G.694.2 | 40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM
wavelengths, compliant with ITU-T G.694.2 | |
Networking Mode | •• Supporting pure packet, hybrid (packet + SDH) or SDH networking
•• Supporting WDM networking •• Supporting single-fiber bidirectional transmission | Supports pure packet, hybrid (packet + SDH), or SDH networking
Supports WDM networking | Supports pure packet, hybrid (packet + SDH), or SDH networking
Supports WDM networking |
Product details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
