| Brand Name : | HUAWEI |
| Model Number : | TNZ5UNS4T65 |
| Price : | $100-$200 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500pcs/week |
| Delivery Time : | 3-7 work days |
Product Desription:

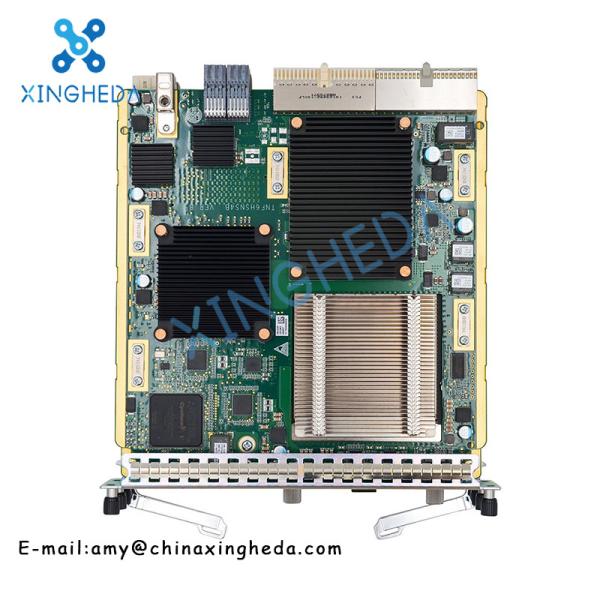

TNZ5UNS4T65 is 1-port 100G universal line service processing board.
With one 100G-DWDM-C ext.-T65-SM-TCFP TNF1C1CFPT65
Applied to Huawei OSN 1800V.
Supports hybrid transmission of OTN, SDH and packet services, and functions such as Layer 2 switching, OTN ports, and SDH overhead processing.
Supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s. Functions supported by the UNS4 board vary depending on the signals received.
Supports Tributary SNCP, ODUk SNCP, intra-board 1+1 protection (when working with the OLP board).
Supports ESC function, ESC communication.
Supports the PRBS function on the WDM side.
Supports Electrical-layer ASON, Optical-layer ASON.
Supports outloops on VC-12, VC-3 channels, and supports inloops/outloops on VC-4 channels.
Supports Outband DCN.
Supports IEEE 1588v2.
Supports 1:1 PW FPS, 1:1 PW APS.
Supports MC-LAG, LPT, Packet SNCP, MC-PW APS, MRPS, LLDP, HQoS, Inband DCN, IGMP Snooping.
Specification:
| Basic functions | |||
| Line mode | OTN | 80 x ODU0<->ODU4<->OTU4 40 x ODU1<->ODU4<->OTU4 10 x ODU2<->ODU4<->OTU4 10 x ODU2e<->ODU4<->OTU4 2 x ODU3<->ODU4<->OTU4 ODU4<->OTU4 ODUflex(n=1, 80)<->ODU4<->OTU4 | |
| SDH | 8 x STM-16<->8 x ODU1<->1 x ODU4<->1 x OTU4 2 x STM-64<->2 x ODU2<->1 x ODU4<->1 x OTU4 | ||
| Packet | A maximum of 100 Gbit/s packets<->80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4 | ||
| Regeneration mode | 1 x OTU4<->1 x OTU4 | ||
| Clock synchronization | OTN services: Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex) SDH services: SDH clock synchronization is supported when SDH virtual ports are configured. Packet services: Physical-layer (ODU0/ODU1/ODUflex) clock synchronization is supported when packet virtual ports are configured. | ||
| Specifications (OTN functions) | |||
| Basic functions | Supports conversion of the following signals: 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4 Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, and ODUflex signals. | ||
| Cross-connect functionality | Implements the following service grooming when working with cross-connect boards: 80 x ODU0/ODUflex, 40 x ODU1, 10 x ODU2/ODU2e, 2 x ODU3, 1 x ODU4. | ||
| OTN function | Supports OTU4 interfaces on the WDM side. Adopts the frame formats and overhead processing methods defined in ITU-T G.709. Supports the SM function at the OTU4 layer. Supports the PM and TCM functions at the ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer, and non-intrusive monitoring of PM and TCM overheads. | ||
| Specifications (SDH functions) | |||
| Service processing | Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenated services.) | ||
| Overhead processing | Processes section overheads of STM-16/STM-64 signals. Transparently transmits and terminates path overheads. Supports the setting and querying of J0 (to be received) bytes. Provides transparent DCCs and orderwire byte channels. | ||
| Protection schemes | Supports SNCP protection. Supports SNCTP protection. Supports 1+1 linear MSP protection. Supports ring MSP protection. | ||
| Specifications (Packet functions) | |||
| Service specifications | Processing capability | 100 Gbit/s | |
| Service bearing media | MultiProtocol Label Switching Transport Profile (MPLS-TP) | Supported | |
| 802.1Q in 802.1Q (QinQ) link | Supported | ||
| Port | Supported | ||
| Ethernet line (E-Line) | Native ETH service: Point-to-point transparently transmitted E-Line service VLAN-based E-Line service QinQ-based E-Line servic ETH PWE3 service: PW-based E-Line service (VPWS service) | ||
| Ethernet local area network (E-LAN) | Native ETH service: E-LAN service based on the IEEE 802.1d bridge E-LAN service based on the IEEE 802.1q bridge ETH PWE3 service: PW-based E-LAN service (VPLS service) | ||
| MS-PW | Supported | ||
| Jumbo frame | Supports a jumbo frame containing a maximum of 9600 bytes. | ||
| Maximum frame length (MFL) for a port | 9600 bytes. | ||
| Maintenance features | MPLS-TP OAM | Supported | |
| ETH-OAM | Supports Ethernet service OAM. | ||
| RMON | Supported | ||
| Support for port traffic mirroring | |||
| Version description of the UNS4 board | |||
| Board | Product Applicable-System Control Board-Initial Board Version Supported by System Control Board | ||
| TNZ5UNS4 | 1800 V-TNZ5UXCMS-V100R006C20 1800 V-TNZ8XCH-V100R009C00SPC700 | ||
| CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, high optical power, T65)-SMF Specifications | |||
| Parameter | Value | ||
| Line code format | ePDM-QPSK(SDFEC2, wDCM-Metro) | ||
| Transmitter parameter specifications at point S | |||
| Center frequency (THz) | 191.3 to 196.05 | ||
| Maximum mean launched power (dBm) | 2 | ||
| Minimum mean launched power (dBm) | -3 | ||
| Center frequency deviation (GHz) | ±2.5 | ||
| Maximum -10 dB spectral width (nm) | 0.4 | ||
| Maximum -3 dB spectral width (nm) | 0.3 | ||
| Dispersion tolerance (back-to-back) (ps/nm) | 12000 | ||
| TX OSNR(in band) (dB) | 35 | ||
| Receiver parameter specifications at point R | |||
| Receiver type | PIN | ||
| Operating wavelength range (nm) | 1529 to 1568 | ||
| Receiver sensitivity (dBm) | -18 | ||
| Minimum receiver overload (dBm) | 0 | ||
| Maximum reflectance (dB) | 27 | ||
| Mechanical Specifications | |||
| Typical Power Consumption(W) | 117 (Line Mode) / 114.5 (Regeneration Mode) | ||
| Maximum Power Consumption(W) | 128 (Line Mode) / 126 (Regeneration Mode) | ||
| Dimension (W x H x D, mm) | 193.8 x 40.1 x 205.9 | ||
| Weight(kg) | 1.75 kg | ||
Product details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
