| Brand Name : | HUAWEI |
| Model Number : | TN52UXCM |
| Price : | $100-$200 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500pcs/week |
| Delivery Time : | 3-7 work days |
Product Desription:
3.2T universal cross connect board (ODUk, PKT, VC4&VC12) on Huawei OSN8800 T32.
Enhanced OptiX OSN 8800 T32 subrack:
Cross-connects a maximum of 3.2 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4or flex) signals.
Performs packet switching of a maximum of 1.6 Tbit/s Ethernet services.
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.
Supports hybrid transmission of the above-mentioned services with the maximum cross-connect capacity of 3.2 Tbit/s.
General OptiX OSN 8800 T32 subrack:
Cross-connects a maximum of 2.56 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.
Performs packet switching of a maximum of 640 Gbit/s Ethernet services.
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.
Supports hybrid transmission of the above-mentioned services with the maximum cross-connect capacity of 2.56 Tbit/s.
Supports cross-connection 1+1 protection.
Provides 1+1 hot backup.
Provides 1+1 warm backup.
Supports the manual switching and auto switching.
Supports the non-revertive switching.
Supports electrical-layer ASON.

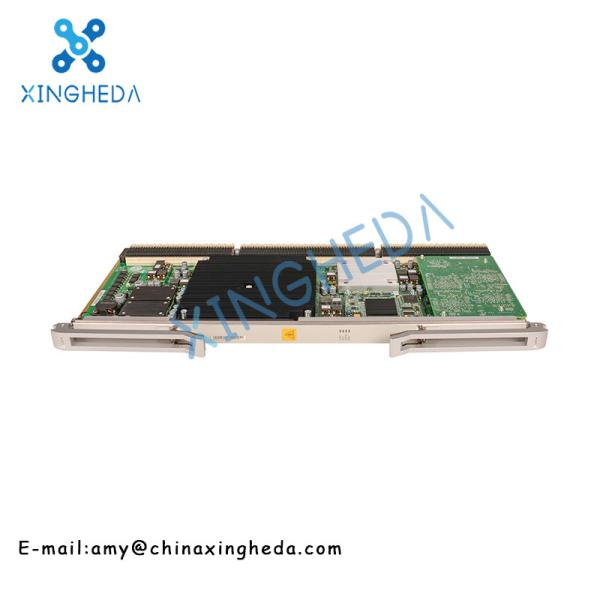

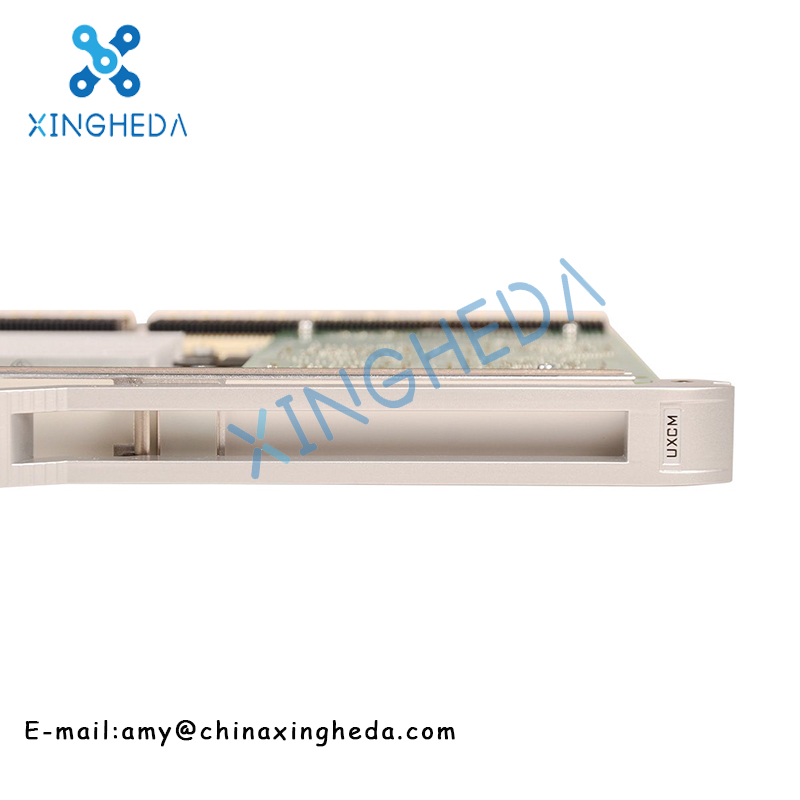

TN52UXCM is a universal cross connect board applied to Huawei OSN8800 T32, with cross-connect capacity of 3.2T, ODUk, Packet, VC4&VC12. TN52UXCM part number is 03021KSK, and it has only one functional version TN52.
Specification:
| Mechanical Specifications | |
| Dimensions(mm) | 581.5(H) x 27.2(W) x 220(D) |
| Weight(kg) | 4.0 |
| Power Consumption | |
| Power Consumption at Warm Backup (Room Temperature)(W) | 119 |
| Power Consumption at Warm Backup (High Temperature)a(W) | 131 |
