Product Desription:

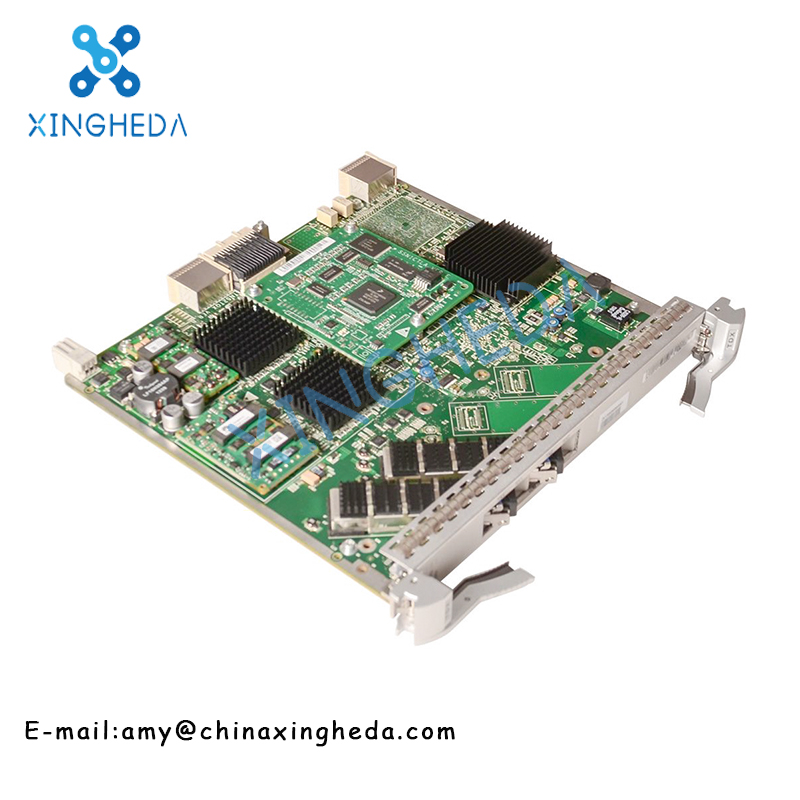

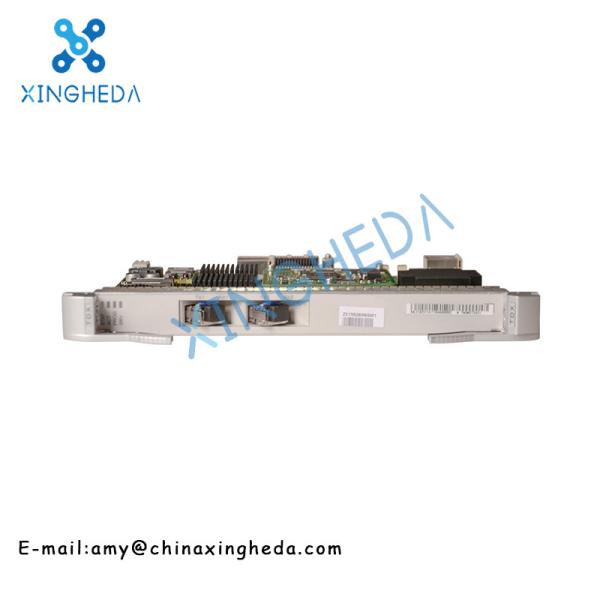

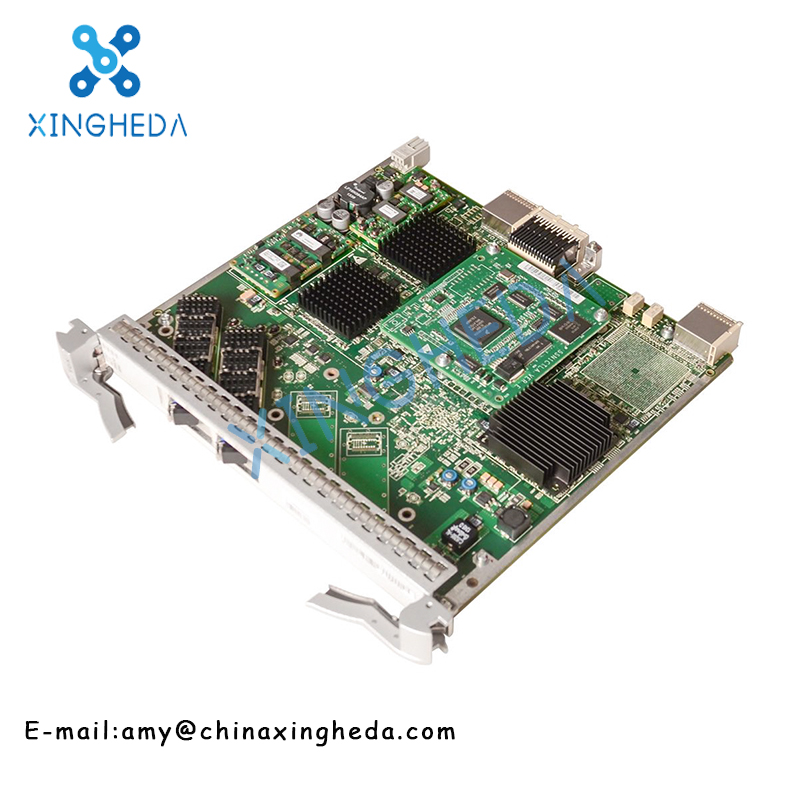

2x10G tributary service processing board on Huawei OSN6800 OSN8800.
Equipped with 2PCS 10G-10km-XFP client-side pluggable modules.
TDX has functional versions of TN11, TN12, TN52 and TN53 with different features supported, TN53TDX can substitute for TN12/52TDX without any software upgrade.
STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s.
10GE LAN: Ethernet service at a rate of 10.31 Gbit/s.
10GE WAN: Ethernet service at a rate of 9.95 Gbit/s.
OTU2: OTN service at a rate of 10.71 Gbit/s.
OTU2e: OTN service at a rate of 11.1 Gbit/s.
FC800: SAN service at a rate of 8.5 Gbit/s.
FC1200: SAN service at a rate of 10.51 Gbit/s.
Supports the cross-connection of two ODU2/ODU2e signals between the TDX and the cross-connect board through the backplane.
Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
The mapping process is compliant with ITU-T G.709 and G.Sup43.
Supports PM functions for ODU2.
Supported ESC function when the client-side service type is OTU2 or OTU2e.
Supports the PRBS function on the client side.
The board supports the LPT function only when the client-side service type is 10GE LAN.
Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e.
Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
Supports the ALS function on the client side when client services are non-OTN services.
Supports test frame function when client-side service is 10GE LAN and Port mapping is MAC Transparent Mapping (10.7 G).
Supports Electrical-layer ASON.
Supports ODUk SNCP.
Supports client 1+1 protection.
Supports tributary SNCP protection.
Ethernet service mapping mode: Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G).
TN52TDX01 is 2x10G OTN tributary board applied to Huawei OSN6800 OSN8800, converts between two channels of 10GE LAN/10GE WAN/STM-64/OC-192/OTU2 optical signals and eight channels of ODU1 virtual concatenation electrical signals or two ODU2/ODU2e electrical signals using cross-connections. Two TN52TDX01 work with one NS3 board to perform 10G to 40G.
Specification:
| Valid Slot | ||
OptiX OSN 8800 T64 subrack: IU1-IU8, IU11-IU42, IU45-IU68. OptiX OSN 8800 T32 subrack:IU1-IU8, IU12-IU27, IU29-IU36. OptiX OSN 8800 T16 subrack:IU1-IU8, IU11-IU18. OptiX OSN 6800 subrack:IU1-IU8, IU11-IU16. | ||
| Client-Side Pluggable Optical Module | ||
10 Gbit/s Multirate-10 km-XFP 10 Gbit/s Multirate-40 km-XFP 10 Gbit/s Multirate-80 km-XFP 10 Gbit/s Single Rate-0.3 km-XFP | ||
| Equipped Client-side pluggable optical module specifications (10 Gbit/s services) | ||
| Parameter | Value | |
| Optical Module Type | 10 Gbit/s Multirate-10km-XFP | |
| Line code format | NRZ | |
| Optical source type | SLM | |
| Target transmission distance (jkm) | 10 | |
| Transmitter parameter specifications at point S | ||
| Operating wavelength range(nm) | 1290 to 1330 | |
| Maximum mean launched power(dBm) | -1 | |
| Minimum mean launched power(dBm) | -6 | |
| Minimum extinction ratio(dB) | 6 | |
| Minimum side mode suppression ratio(dB) | 30 | |
| Eye pattern mask | G.691-compliant | |
| Receiver parameter specifications at point R | ||
| Receiver type | PIN | |
| Operating wavelength range(nm) | 1260 to 1565 | |
| Receiver sensitivity (multirate)(dBm) | -11 | |
| Receiver sensitivity (10GE LAN)(dBm) | -14.4 | |
| Minimum receiver overload(10GE LAN)(dBm) | 0.5 | |
| Minimum receiver overload (STM-64)(dBm) | -1 | |
| Maximum reflectance(dB) | -27 | |
| Mechanical Specifications | ||
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) | |
| Weight(kg) | 1.4 | |
Product details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
