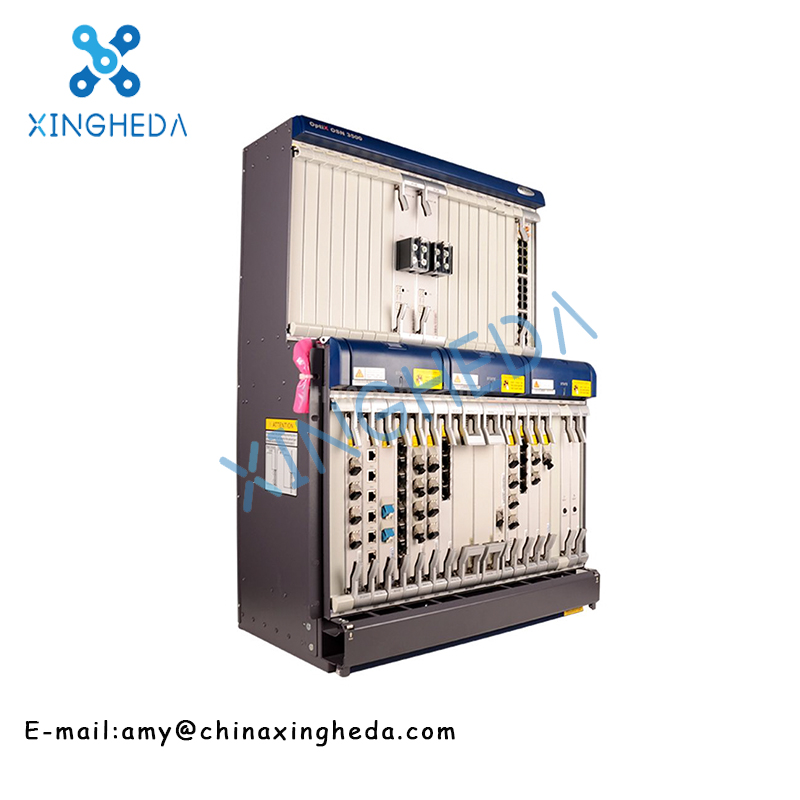

Huawei OptiX OSN3500 02113256-2 Silver Line STM-64/STM-16 level Subrack
Product Description:
OptiX OSN 3500 is mainly used at the convergence layer and
backbone layer of the metropolitan area network (MAN).In TDM networking, can be networked with the other OptiX transmission equipment (the OptiX OSN 9560, OptiX OSN 9500, OptiX OSN 7500 II, OptiX OSN 7500, OptiXOSN 3500 II, OptiX OSN 2500, OptiX OSN 1500, OptiX OSN 500, and OptiX OSN 550) to optimize the carrier's investment.
With the packet switching technology, can constitute a packet data transmission network with the other OptiX transmission equipment to meet the requirement for bearing IP services.
Can be flexibly networked with WDM equipment and Metro equipment.
Can transparently transmit services over third-party Layer 2 networks, allowing end-to-end configuration and management.
Specifications:
Indicator and Specifications | Description | |
|---|---|---|
| Dimensions (H x W x D) | 722 mm x 497 mm x 295 mm | |
| Number of valid slots | 15 for processing boards and 16 for interface boards | |
| Equipment capacity | Packet | 160 Gbit/s |
| TDM | 200 Gbit/s higher order cross-connections and 20 Gbit/s lower order cross-connections | |
| Service type supported | SDH, PDH, ATM, CES, Ethernet , PCM, SAN, video and others | |
| Network topology | Point-to-point, chain, star, ring, ring with chain, intersecting rings, tangent rings | |
| Backup and protection | Network-level protection (packet) | Tunnel 1:1/1+1 APS, PW 1:1/1+1 APS, packet linear MSP, LPT, MSTP, MRPS |
| Network-level protection (TDM) | SDH protection: subnet connection protection, linear MSP, ring MSP , DNI protection, shared-fiber virtual path protection, optical-path-shared MSP EoS protection: LCAS, LPT, STP/RSTP, MSTP, ERPS, RPR, VP-Ring/VC-Ring protection | |
| Device-level protection | Packet: LAG, MC-LAG TDM: TPS, BPS, PPS, LAG, DLAG, 1+1 protection for ATM boards, 1+1 protection for wavelength conversion units 1+1 hot backup for cross-connect and timing units 1+1 hot backup for SCC units 1+1 hot backup for power input units 1:N protection for +3.3 V power supply of the board Intelligent fan Board protection modes under abnormal conditions | |
| Maintenance | MPLS OAM | CV, FFD, BDI, FDI, Ping, Traceroute |
| MPLS TP OAM | CC, RDI, AIS, LB, LT, LM (only single-ended LM), DM, TST, LCK, CSF (only PW CSF) | |
| ETH OAM (packet) | Ethernet service OAM: CC, LB, LT, LM (only single-ended LM), DM (only two-way DM) Ethernet port OAM: OAM auto-discovery, link performance monitoring, remote loopback, fault detection, self-loop detection | |
| ETH OAM (TDM) | Ethernet service OAM: CC, LB, LT, OAM_Ping Ethernet port OAM: OAM auto-discovery, link performance monitoring, remote loopback, fault detection, self-loop detection | |
| Synchronization | Packet | Physical-layer clock (SDH) Synchronous Ethernet IEEE 1588v2 CES ACR |
| TDM | Physical-layer clock (SDH) | |
| DCN | Outband DCN | HWECC, IP over DCC, OSI over DCC |
| Inband DCN | HWECC, IP | |
| TP-Assist | Service configuration: supports end-to-end service configuration and automatic deployment of alarm management. Service commissioning: supports the one-click service connectivity test, one-click service performance test, and automatic test without any instrument. Routine maintenance: supports performance statistics and monitoring and E-Line and E-LAN service path visualization. Fault diagnosis: supports intelligent fault locating, IP ping response, and service loopback detection. | |
| Standard working voltage | If the standard voltage of the input power is -48 V, the power voltage ranges from -38.4 V to -57.6 V. If the standard voltage of the input power is -60 V, the power voltage ranges from -48 V to -72 V. | |
| Installation method | ETSI cabinet | |
| Equipment running environment | Subrack temperature | Long-time operation: 0ºC to 45ºC Short-time operation: -5ºC to +55ºC |
| Subrack humidity (relatively) | Long-time operation: 5-85% Short-time operation: 5-95% | |
| Reliability specifications | System availability | 0.9999964 |
| Mean time to resolution (MTTR) | 1 h | |
| Mean time between failures (MTBF) | 31.83 years | |
Product Details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
