| Brand Name : | HUAWEI |
| Model Number : | H901XSED |
| Price : | $100-$200 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500pcs/week |
| Delivery Time : | 3-7 work days |
Product Desription:

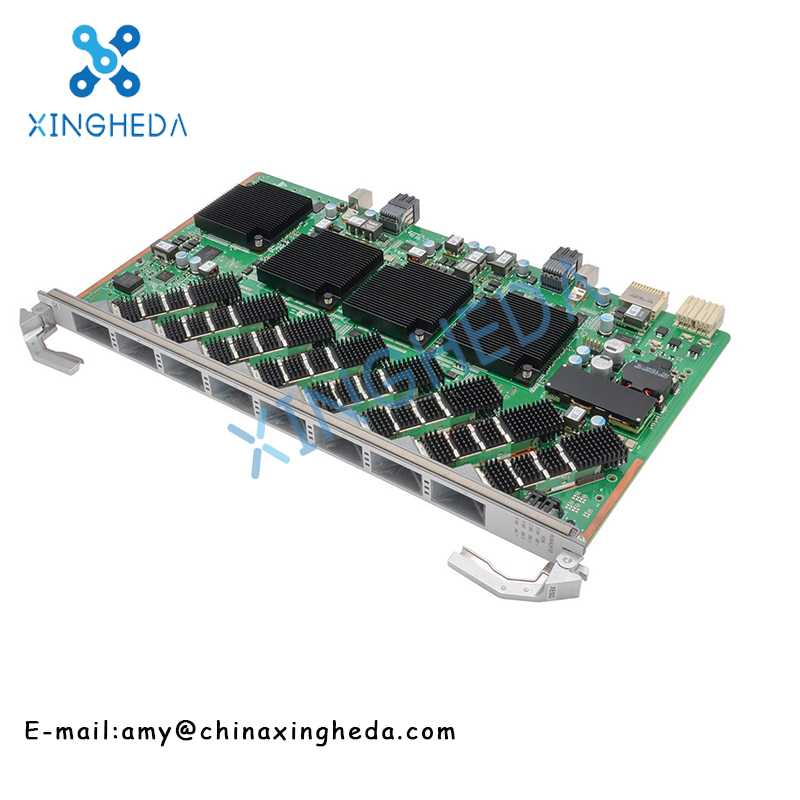

Huawei 8-port Symmetric 10G GPON (XGS-PON) OLT Interface Board
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Support split ration 1:256
Forwarding capability: 80Gbit/s
Rate mode: Asymmetric & Symmetric
Transmit Speed: 9.953 Gbit/s
Receive Speed: 9.953 Gbit/s & 2.488 Gbit/s
Interface Type: SC/PC
Maximum transmission distance: 40 km
10G-GPON optical module Overload Optical Power: -7 dBm
H901XSED is a 8-port Symmetric 10G GPON (XGS-PON) interface card of Huawei MA5800 series OLT. It works together with the ONU to provide symmetric 10G GPON access services.
Specification:
| Specification | |
| Service ports | |
| GPON Port | 8 Symmetric 10G GPON Port |
| Function | |
| Forwarding capability | 80 Gbit/s |
| Rate mode | Asymmetric Symmetric |
| T-CONTs per PON port | 2048 |
| Service flows per PON board | 16376 |
| Maximum Frame Size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| Maximum number of MAC addresses | 131072 |
Maximum distance difference between two ONUs under the same PON port | 40 km |
| FEC | Bidirection |
| Queue scheduling hierarchy | 4-level HQoS |
| 1588v2 | Not supported |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | 10G-GPON |
| Port Rate | Tx: 9.953 Gbit/s Rx: 9.953 Gbit/s & 2.488 Gbit/s |
| Minimun Output Optical Power | 2 dBm |
| Maximum Output Optical Power | 6 dBm |
| Maximum Receiver Sensitivity | -28 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | -6 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 108 W; Maximum: 151 W |
| Operating temperature | -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2) |
Product details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
