Product Desription:
Supports active/standby switchover at the control plane
Supports load sharing mode at the forwarding plane, doubling processing performance
Supports ISSU, saving the upgarde interruption time
Supports synchronization Ethernet
Supports 1588v2 and 1588ACR with proper daughter boards
Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).
Supports Communication Interfaces TX RX0 to TX RX3 (4 x SFP+/SFP 10GE/GE ports).

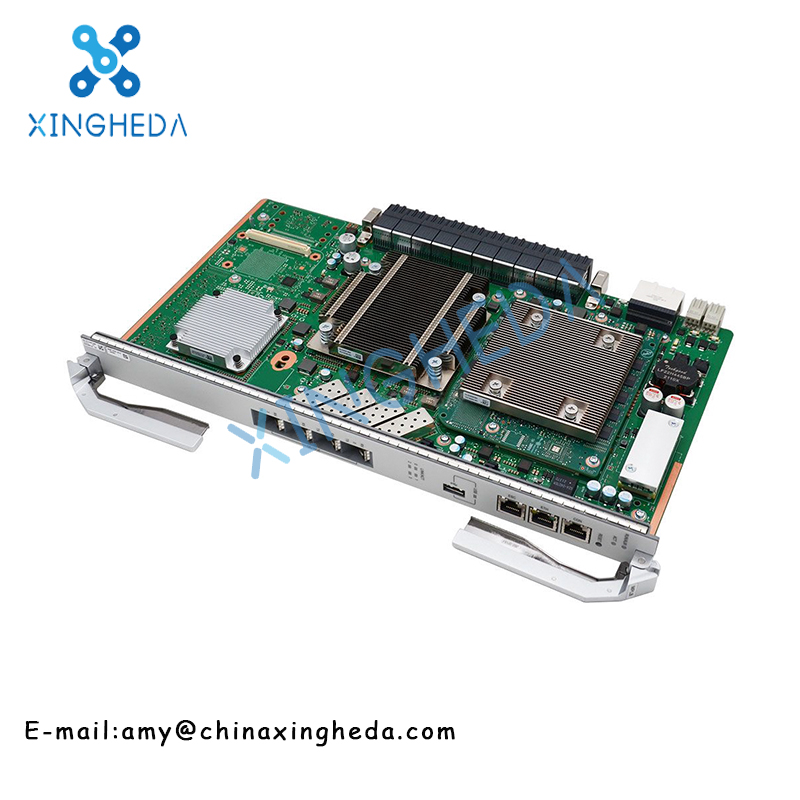

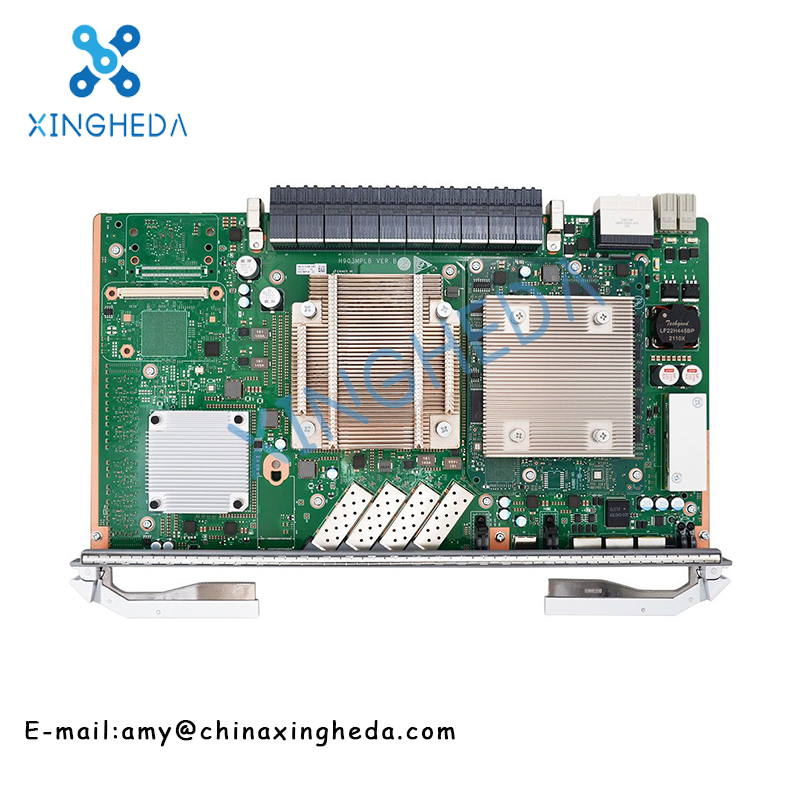

MPLB is a main control card of Huawei SmartAX MA5800 NG OLT; it is the core of system control and service switching and aggregation. MAX access 17408 subscribers, and supports 131072 ARP table.
Specification:
| Function | |
| Bandwidth per slot | 200Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 131072 |
| Maximum Frame Size | 2052 bytes. 9216 bytes (jumbo frame enabled) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 73W Maximum: 120 W |
| Mechanical Specification | |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 2.2 |
