    HUAWEI H901CGID 03024GEC Huawei MA5800 Series10G GPON And GPON N2a Board

    HUAWEI H901CGID 03024GEC Huawei MA5800 series10G GPON and GPON N2a Board

    Product Desription:

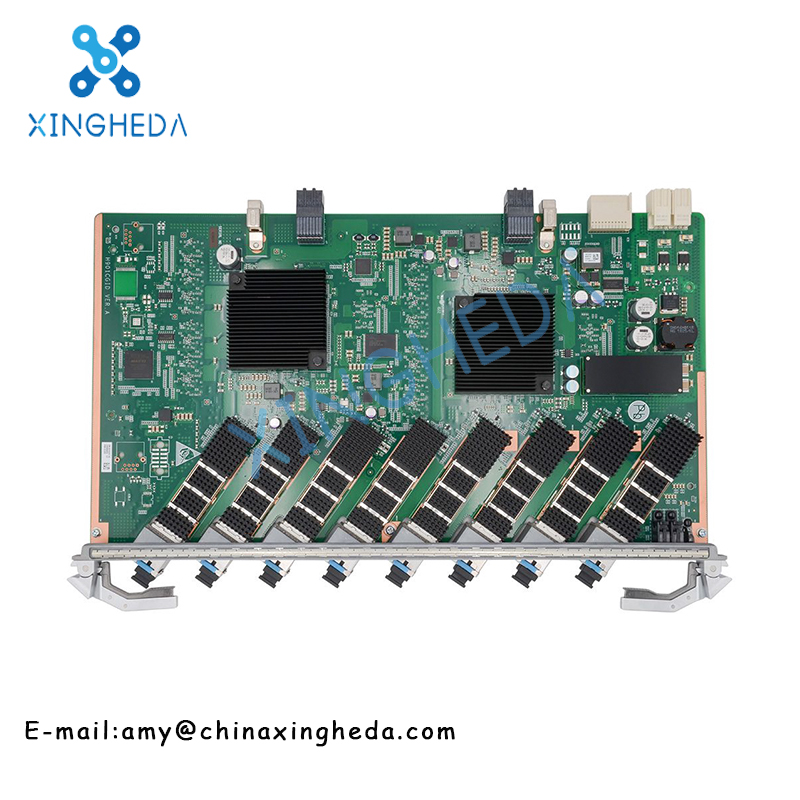

    Huawei 8-port 10G GPON and GPON combo OLT Interface Board with XGPON&GPON XFP N2a Optical Module

    Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

    Max split radio: GPON 1:128 XG-PON: 1:256

    GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s

    XG-PON channel: Tx: 9.953Gbit/s, Rx: 2.488Gbit/s

    Interface Type: SC


    H901CGID is an 8-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

    Specification:

    Specification
    Service ports
    GPON Port8 XG-PON & GPON ports
    GPON SFP+ Module Specification
    TypeOne-fiber bidirectional optical module, N2a
    Operating WavelengthGPON channel:

    Tx: 1490 nm

    Rx: 1310 nm


    XG-PON channel:

    Tx: 1577 nm

    Rx: 1270 nm

    Encapsulation TypeXFP
    Port Rate

    GPON channel:

    Tx: 2.488 Gbit/s

    Rx: 1.244 Gbit/s


    XG-PON channel:

    Tx: 9.953 Gbit/s

    Rx: 2.488 Gbit/s

    Minimum Output Optical Power

    GPON channel: 3 dBm

    XG-PON channel: 4 dBm

    Maximum Output Optical Power

    GPON channel: 7 dBm

    XG-PON channel: 8 dBm

    Maximum Receiver Sensitivity

    GPON channel: -32 dBm

    XG-PON channel: -29.5 dBm

    Optical Connector TypeSC
    Optical Fiber TypeSingle-mode
    Overload Optical Power

    GPON channel: -12 dBm

    XG-PON channel: -9 dBm

    Extinction Ratio8.2 dB
    Function
    Forwarding capability80 Gbit/s
    Rate modeAsymmetric rate
    T-CONTs per PON port

    GPON: 1024

    XG-PON: 2048

    Service flows per PON board16368
    Maximum frame size

    2052 bytes

    9216 bytes (jumbo frame enabled)

    Maximum number of MAC addresses131072

    Maximum distance difference between

    two ONUs under the same PON port

    40 km
    Device Specifications
    Dimensions (W x D x H)23.30 mm * 257.90 mm * 399.20 mm
    Power Consumption and Maximum Frame Size
    Power Consumption

    Static: 48 W

    Maximum: 78 W

    Operating temperature-40°C to +65°C

    Product details:



    If you are interested, please let us know the specific model. We will provide the best service and the best price!
