    HUAWEI DCDU12B 02120731 DC Power Distribution Power Supply -48v DBS3900 BTS3900

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : DCDU12B
    Price : $100-$200
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/week
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

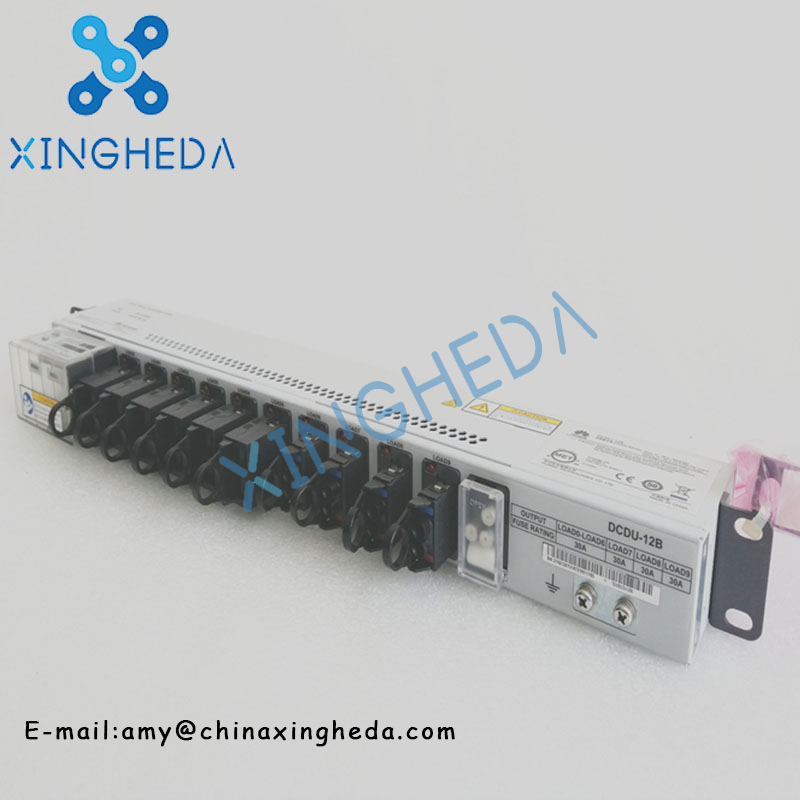

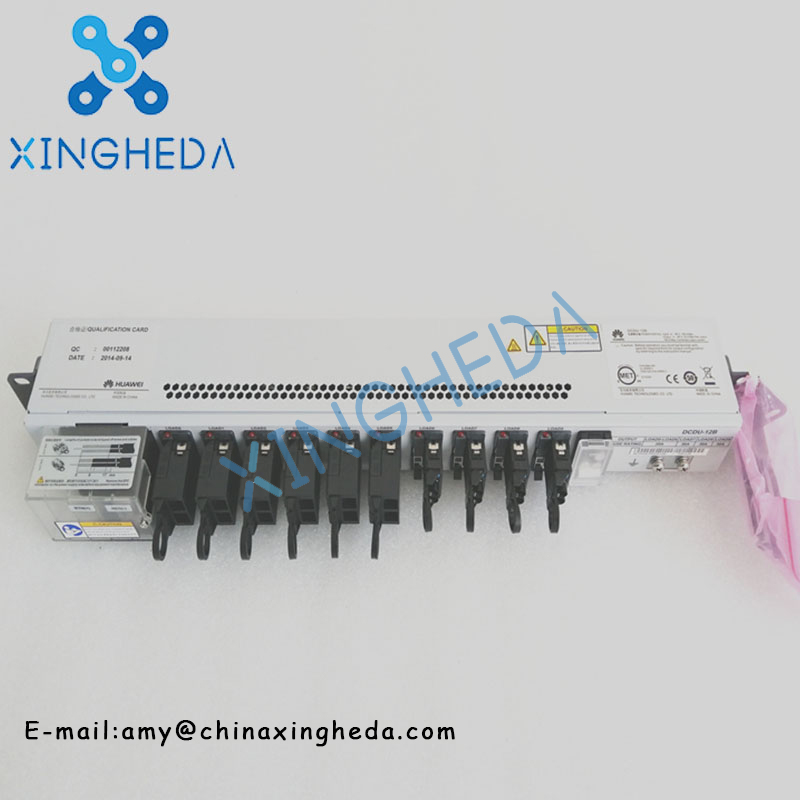

    HUAWEI DCDU12B 02120731 DC Power Distribution Power Supply -48v DBS3900 BTS3900

    HUAWEI DCDU12B 02120731 DC power distribution power supply -48v DBS3900 BTS3900

    Product Description:
    Electrical Specifications
    Specification
    Input
    Input Voltage
    -38.4Vdc~-57Vdc; 2 blocks, DC-48V,Max 100A
    Input Current(Max)
    100A
    Rated voltage
    -48V
    Output
    Voltage drop
    ≤0.5Vdc
    Output protection
    Circuit breaker
    Output voltage
    -38.4Vdc~-57Vdc, rated value: -48Vdc
    Output channels
    9 channels, 6 x 20A and 3 x 12A
    Others
    Dimension
    L*D*H(mm).442 mm *310 mm *42 mm
    Weight
    3.5Kg
    Packing
    580 mm *225 mm *120mm, 4.0kg
    Environmental Specifications
    Operating temperature
    -40℃~+65℃
    Storage temperature
    -40℃~+70℃
    Operating humidity
    5%~95%(non-condensing)

    Technical specifications of the BTS3900:

    ItemSpecification
    Working bandFrequency bandReceiving bandTransmitting band
    Band class 0
    (800 MHz)
    824 MHz to 849 MHz869 MHz to 894 MHz
    Band class 15
    (AWS)
    1710 MHz to 1755 MHz2110 MHz to 2155 MHz
    Band class 1
    (1900 MHz)
    1850 MHz to 1910 MHz1930 MHz to 1990 MHz
    Band class 14
    (US PCS 1.9 GHz)
    1850 MHz to 1915 MHz1930 MHz to 1995 MHz
    Band class 6
    (2 GHz)
    1920 MHz to 1980 MHz2110 MHz to 2170 MHz

    Transmitter and receiver

    specifications

    Frequency bandReceiver sensitivityMax. transmit power
    Band class 0
    (800 MHz)
    –130 dBm100 W
    Band class 15
    (AWS)
    –127 dBm80 W
    Band class 1
    (1900 MHz)
    –127 dBm80 W
    Band class 14
    (US PCS 1.9 GHz)
    –127 dBm80 W
    Band class 6
    (2 GHz)
    –127 dBm80 W
    Transmission portsMax. configurationNumber of available ports
    One CMPT (4E1) and two UTRPs

    One FE electrical port and one FE optical port

    (supporting a maximum of 20 E1/T1 links)

    One CMPT (8E1) and two UTRPsOne FE electrical port (supporting a maximum of 24 E1/T1 links)
    NOTE
    The CMPT (8E1) does not support the ATM transmission.
    The CMPT (8E1) does not support transmission over the optical port.

    Product Detail:

    If you are interested, please let us know the specific model. We will provide the best service and the best price!
