| Model Number : | RF 2 in 2 out |
| Price : | $100-$200 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500pcs/week |
| Delivery Time : | 3-7 work days |

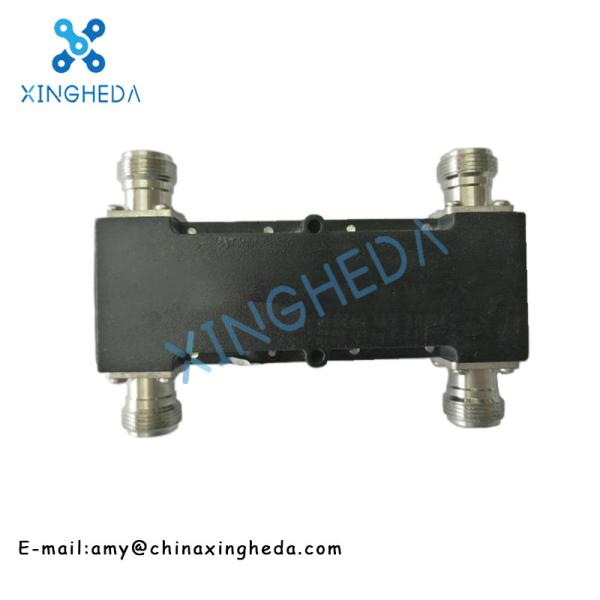

RF 2 in 2 out wide band DIN Connector Hybrid 3dB Bridge Coupler Combiner
Product Description:
| Model No. | Frequency | Coupling | Insertion Loss | Isolator | Power | VSWR |
| (MHz) | (dB) | (dB Max) | (dB) | (W) | ||
| HX-350-1000-200-22 | 350-1000 | 3 | ≤0.5 | ≥23 | 200 | ≤1.25:1 |
| HX-350-2500-200-22 | 350-2500 | 3 | ≤0.8 | ≥23 | 200 | ≤1.25:1 |
| HX-380-470-500-22 | 380-470 | 3 | ≤0.5 | ≥25 | 500 | ≤1.25:1 |
| HX-400-2500-200-22 | 400-2500 | 3 | ≤0.8 | ≥23 | 200 | ≤1.25:1 |
| HX-670-2700-200-22 | 670-2700 | 3 | ≤0.75 | ≥23 | 200 | ≤1.25:1 |
| HX-690-2700-200-22 | 690-2700 | 3 | ≤0.75 | ≥23 | 200 | ≤1.25:1 |
| HX-700-2700-200-22 | 700-2700 | 3 | ≤0.75 | ≥23 | 200 | ≤1.25:1 |
| HX-800-2500-200-22 | 800-2500 | 3 | ≤0.5 | ≥23 | 200 | ≤1.25:1 |
| HX-800-2500-500-22 | 800-2500 | 3 | ≤0.5 | ≥23 | 500 | ≤1.25:1 |
| Impedance : 50 Ω | ||||||
| Connector Type :N-F/N-M | ||||||
| Temperature :-30~+70℃ | ||||||
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
