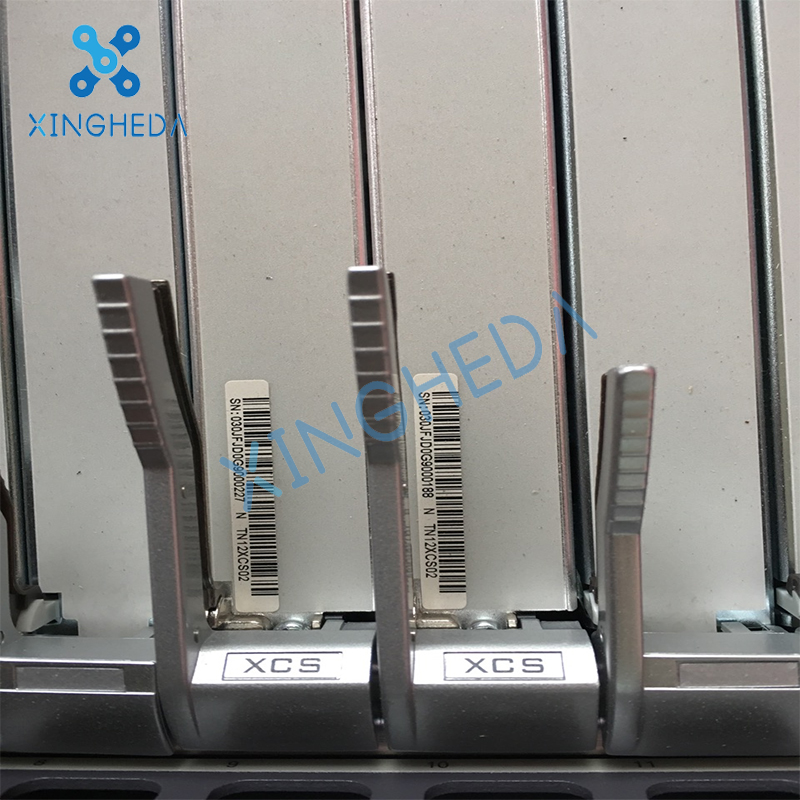

    Huawei TN12XCS02 XCS 03030JFJ For Huawei OSN 8800 OSN 6800

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : Huawei TN12XCS02
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/week
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Huawei TN12XCS02 XCS 03030JFJ For Huawei OSN 8800 OSN 6800

    Huawei TN12XCS02 XCS 03030JFJ for huawei OSN 8800 OSN 6800


    Product Description:

    Specifications
    OSN 8800 T16
    OSN 8800 T32
    OSN 8800 T64
    Dimensions (mm)
    498 x 295x 450
    (W) (D) (H)
    498 x 295 x 900
    (W) (D) (H)
    498 x 580 x 900
    (W) (D) (H)
    Number of slots for service boards
    16
    32
    64
    Switch
    Optical
    1 to 9-degree ROADM
    Electrical
    1.6T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 640G VC-4 and 20G VC-3/VC-12 800G Packet
    Enhanced subrack:
    3.2T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12 1.6T Packet General subrack: 1.28T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12
    Enhanced subrack:
    6.4T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12

    General subrack:
    2.56T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12
    Wavelength range
    DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1)
    CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
    Max. rate per channel
    100Gbit/s (OTU4)
    Max. distance
    Multi-span transmission (without electrical regeneration): 32 span x 22dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
    Service types supported
    SDH, SONET, Ethernet, SAN, OTN, Video
    Line rate
    2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
    Max. capacity per PID group
    200 Gbit/s
    Topology
    Point-to-point, chain, star, ring, ring-with-chain, tangent ring,intersecting ring and mesh
    Redundancy and Protection
    Network level protection (OTN)
    Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, ODUk SPRing protection, OWSP
    Network level protection (OCS)
    Linear MSP, MSP ring, transoceanic MSP ring, SNCP, SNCTP
    Network level protection (Ethernet and packet)
    DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP
    DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP
    DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, STP and RSTP, VLAN SNCP
    Equipment level protection
    Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy, centralized clock board redundancy, AUX Board 1+1 Redundancy
    Optical power management
    ALS, AGC, ALC, APE, IPA, OPA
    Synchronization
    Synchronous Ethernet clock
    IEEE 1588v2
    2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
    External time source (1PPS+TOD)
    ASON
    An OTN network supports the Optical-Layer ASON and electrical-Layer ASON. An OCS network supports the SDH ASON feature.
    Operation Environment
    Subrack temperature:
    Long-term operation: 5°C (41 °F) to 45°C (113 °F)
    Short-term operation: -5°C (23 °F) to 55°C (131 °F)

    Relative humidity:
    Long-term operation: 5% to 85%
    Short-term operation: 5% to 90%


    Product Details:


    If you are interested, please let us know the specific model. We will provide the best service and the best price!
