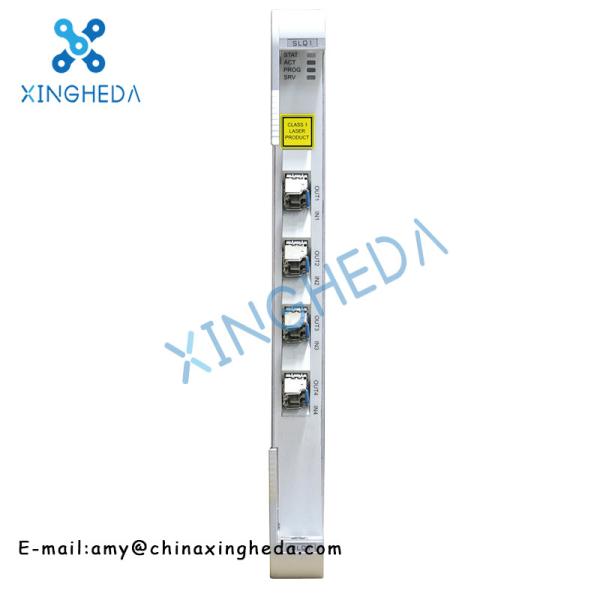

Huawei SLQ1 SSN1SLQ1A 80km OSN3500 Base Station

Huawei SLQ1 SSN1SLQ1A-80km OSN3500 Base Station

Product Description:

Version Description

The SLQ1A is available in one functional version, namely, N1.

Through the board version replacement function, the N1SLQ1 and the N1SLQ1A can substitute each other.

Version Mapping

Board	Start Version
N1SLQ1A	V100R008C01

Parent topic: SLQ1A

Board Updates

This section describes the hardware updates in V200R013C30 and later versions as well as the reasons for the updates. Any product versions that are not listed in the document means that they have no hardware updates.

Parent topic: SLQ1A

Application

The SLQ1A is a line board. The SLQ1A can be used on the OptiX OSN equipment series to transmit and receive STM-1 optical signals. The SLQ1A converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SLQ1A converts the electrical signals sent from the cross-connect side into optical signals and transmits the optical signals.

Figure 1 shows the application of the SDH processing boards. The SDH processing boards can form a ring network or a chain network in the system.

Figure 1 Networking and application of the SDH processing boards

Functions and Features

The SLQ1A transmits and receives STM-1 optical signals, performs O/E conversion for the STM-1 optical signals, extracts and inserts overhead bytes, and generates alarm signals on the line.

Table 1 provides the functions and features of the SLQ1A.

Table 1 Functions and features of the SLQ1A

Function and Feature	SLQ1A
Basic functions	Transmits and receives 4xSTM-1 optical signals.
Specifications of the optical interface	Supports different types of standard optical interfaces, namely, the I-1, S-1.1, L-1.1, L-1.2, Ie-1, and Ve-1.2. The characteristics of the optical interfaces of the I-1, S-1.1, L-1.1, and L-1.2 types comply with ITU-T G.957. The characteristics of the optical interfaces of the Ie-1 and Ve-1.2 types comply with the standards defined by Huawei.
Specifications of the optical module	Supports the detection and query of the information about the optical module. Provides the ALS function. The optical interface supports the setting of the on/off state of a laser. Supports the usage and detection of the SFP optical module, which facilitates the maintenance and upgrading of the optical module.
Service processing	Supports the VC-12 services, VC-3 services, and VC-4 services.
Overhead processing	Processes the section overheads of the STM-1 signals. Supports the transparent transmission and termination of the path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports one to four channels of ECC communication.
Alarms and performance events	Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
Protection schemes	Supports Two-fiber ring MSP, Four-fiber ring MSP, Linear MSP, SNCP, SNCTP, and SNCMP.
Maintenance features	Supports inloops and outloops at optical interfaces. Supports inloops and outloops on VC-4 paths. Supports warm resets and cold resets. The warm reset does not affect services. Supports the query of the manufacturing information of the board. Supports the in-service loading of the FPGA. Supports the upgrade of the board software without affecting services. Supports the press-to-collect function in fault data collection. Hot board swapping.
