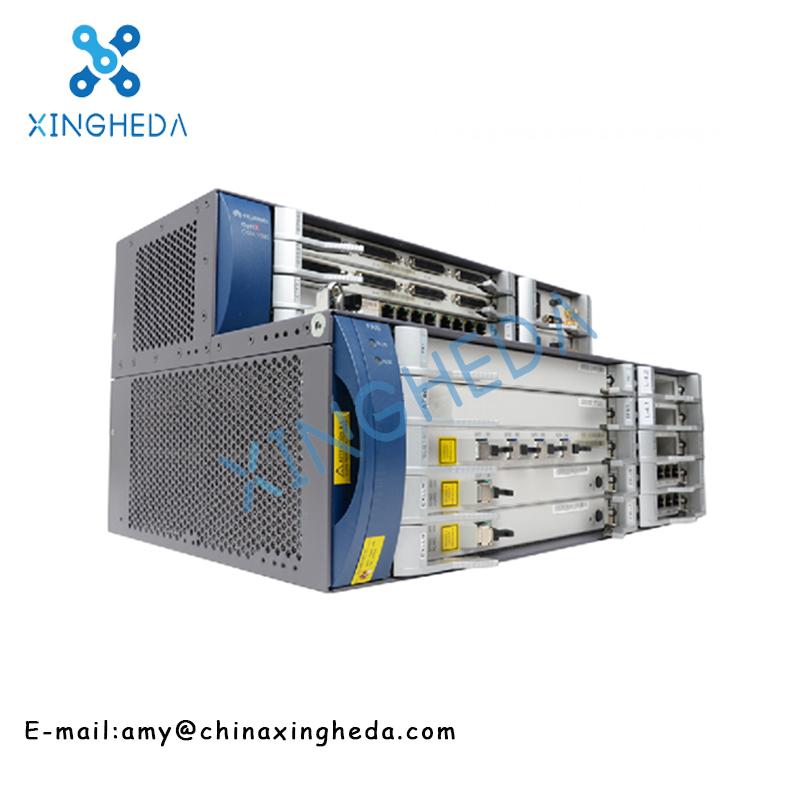

    HUAWEI OSN1500 OSN1500B

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : Huawei OSN1500B
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/week
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    HUAWEI OSN1500 OSN1500B

    HUAWEI OSN1500 OSN1500B


    Product Description:

    SpecificationsOSN 7500OSN 3500OSN 1500BOSN 1500A
    Dimensions (H x W x D)757 mm x 497 mm x 295 mm722 mm x 497 mm x 295 mm221 mm x 444 mm x 263 mm131 mm x 442 mm x 224 mm
    Service Slots22 slots for processing boards and 8 slots for interface boards15 for processing boards and 16 for interface boards12 for processing boards and 4 for interface boards10 slots for processing boards
    Switch CapacityPacket: 160 Gbit/s
    TDM: 360 Gbit/s (higher order), 80 Gbit/s (lower order)
    Packet: 160 Gbit/s
    TDM: 200 Gbit/s (higher order), 20 Gbit/s (lower order)
    Packet: 8 Gbit/s
    TDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order)
    Packet: 8 Gbit/s
    TDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order)
    Networking ModesPure packet, hybrid (packet + SDH) or SDH networking
    WDM networking
    Single fiber bi-directional transmission
    Power Supply-48V DC/-60V DC, 110V AC/220V AC (external module)
    Supported InterfacesOTN interfaces: OTU-3 (40G, compliant with OTL3.4 standard)
    Ethernet interfaces: FE/GE/10 GE
    SDH interfaces: STM-1/4/16/64
    PDH interfaces: E1/E3/E4, T1/T3/T4
    ATM interfaces: E1, STM-1
    WDM interfaces: 40 DWDM wavelengths, compliant with ITU-T G.694.1; 8 CWDM wavelengths, and compliant with ITU-T G.694.2
    PCM interfaces: FXS/FXO, 2/4 wire audio and E&M, G.703 64K co-directional interface, V.35/V.24 (sync/async RS232)/X.21, RS449 (RS423A/RS422A)/RS530/RS530A/RS485, and IEEE C37.94

    Product Details:


    If you are interested, please let us know the specific model. We will provide the best service and the best price!
