| Brand Name : | Huawei |
| Model Number : | ETP48200-C5B7 |
| Price : | $100-$200 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500pcs/week |
| Delivery Time : | 3-7 work days |

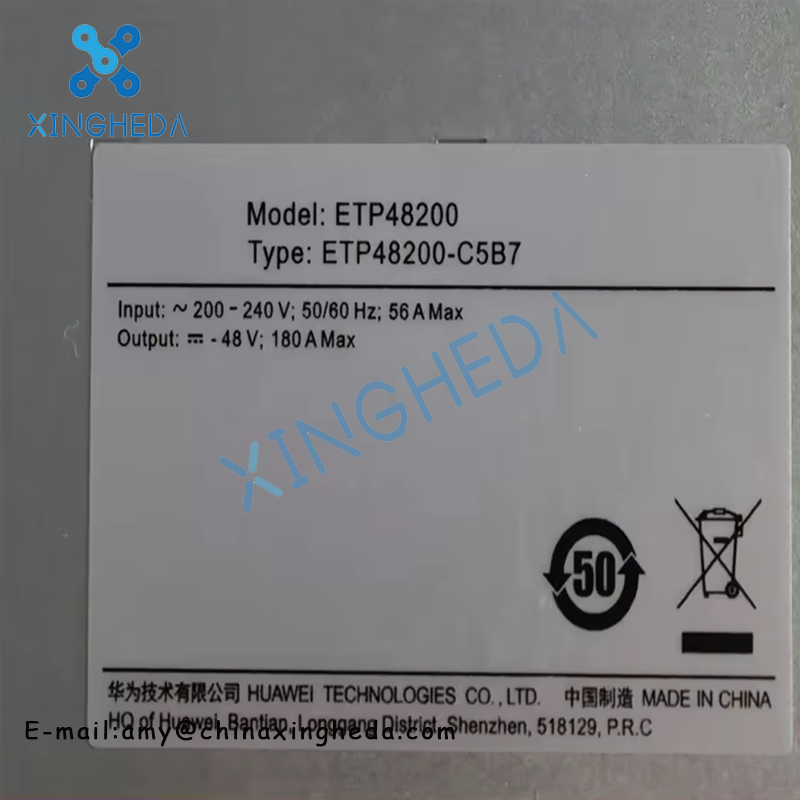

Huawei ETP48200 ETP48200-C5B7 Embedded Telecom Power Supply System
Product Description:
| Integrated power | ETP4830 | ETP4890 | ETP48200 | |
| System | Dimension(W×D×H) | 43.6mm(H) ×442mm(W) ×255mm(D) | 86.1mm(H) ×442mm(W) ×255mm(D) | 266.7mm(H)×482.6mm(W) ×310mm(D) |
| Weight | ≤8kg (full configured) | ≤10kg (full configured) | ≤25Kg(without rectifiers) | |
| Rated capacity | 30A (2PSU) | 45/90A (compatible with 15A and 30A rectifier) (3PSU) | 200A(4PSU) | |
| Cabling mode | Cable outlet from the bottom of the cabinet | |||
| Protection level | IP20 | |||
| AC Distribution | Input | 220V single phase/110V dual live wire | 380V three phase/220V single phase/110V dual live wire | |
| Input voltage | 85~300VAC, rated: 220VAC | |||
| Input frequency | 45~66Hz, rated: 50Hz/60Hz | |||
| DC Distribution | Output voltage | 42~58V DC, default value: 53.5V DC | ||
| Maximum output power | 2000W | 4800W | 12000W | |
| Battery branch | 1x20A fuse | 1×80A MCB | 2x125A MCB | |
| BLVD | 2x20A fuse | 1×10A MCB, 1×32A MCB, 2×40A MCB | 1x63A MCB, 1x32A MCB, 3x16A MCB | |
| LLVD | N/A | N/A | ETP48200-A6: 2x100A MCB ETP48200-B6: 2x100A MCB, 1x20A MCB | |
| Rectifier | Efficiency | Up to 96% | Up to 97% | Up to 97% |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
